Production Line Overview
Design your smart factory through innovative technical solutions

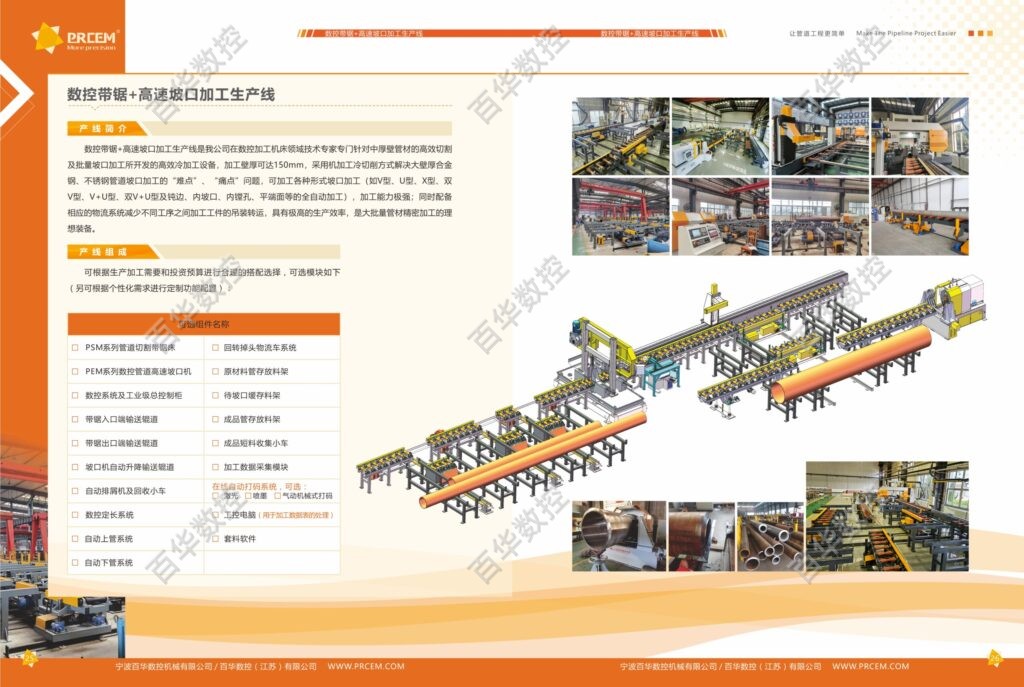

The CNC band saw + high-speed beveling processing production line is a high-efficiency cold-processing system developed by our company’s CNC machine tool experts specifically for efficient cutting and batch beveling of medium- and thick-wall pipes. It can process wall thicknesses up to 150 mm and adopts a machining-based cold cutting method to solve the “challenges” and “pain points” of beveling thick-wall alloy steel and stainless steel pipelines. It is capable of fully automatic machining of various bevel forms (such as V-type, U-type, X-type, double-V, V+U, double-V+U, as well as blunt edges, internal bevels, internal boring, flat end faces, etc.), providing extremely strong processing capacity. Combined with a corresponding logistics system to reduce lifting and transfer of workpieces between different processes, it delivers very high production efficiency and is an ideal solution for precision mass production of pipes.
Production Line Composition
Related components that make up the entire production line
You can flexibly combine modules according to production requirements and investment budget. Optional modules are as follows (custom functional configurations are also available based on individual requirements):
| Optional Component | Optional Component |
|---|---|
| □ PSM series pipe-cutting band saw machine | □ Rotary flip logistics cart system |
| □ PEM series CNC high-speed pipe beveling machine | □ Raw pipe storage rack |
| □ CNC system and industrial-grade main control cabinet | □ Buffer rack for pipes awaiting beveling |
| □ Infeed conveyor roller table for band saw | □ Finished pipe storage rack |
| □ Outfeed conveyor roller table for band saw | □ Finished short-piece collection cart |
| □ Automatic lifting conveyor roller table for beveling machine | □ Machining data acquisition module |
| □ Automatic chip conveyor and collection cart |
□ Online automatic marking system (optional) □ Laser □ Inkjet □ Pneumatic mechanical marking |
| □ CNC fixed-length system | □ Industrial PC (for machining data processing) |
| □ Automatic pipe loading system | □ Nesting software |
| □ Automatic pipe unloading system |
※ As products are continuously upgraded and operating conditions vary between industries and users, configurations and performance parameters are subject to those confirmed at the time of order.
