Product Overview
Solve your business pain points with innovative technical solutions
The PSM Series pipe cutting bandsaw uses bimetal bandsaw blades as the cutting tool and is used for cutting pipes and structural steel. It can be used as a standalone machine or integrated into a production line for automated continuous operation. This bandsaw cuts workpieces through high-speed blade rotation and vertical lifting of the saw frame, covering a wide range of pipe diameters, materials and wall thicknesses.
The bandsaw consists of the machine bed, worktable, column, saw frame, left and right centering clamping devices, bandsaw blade tensioning device, main drive system, electrical system, cooling system, hydraulic system and other components.
The bandsaw is available in CNC and standard versions. When used with a production line it is typically supplied in the CNC version, in which a PLC automatic program provides integrated control of all machine functions as well as the associated material handling system, CNC fixed-length system, etc.

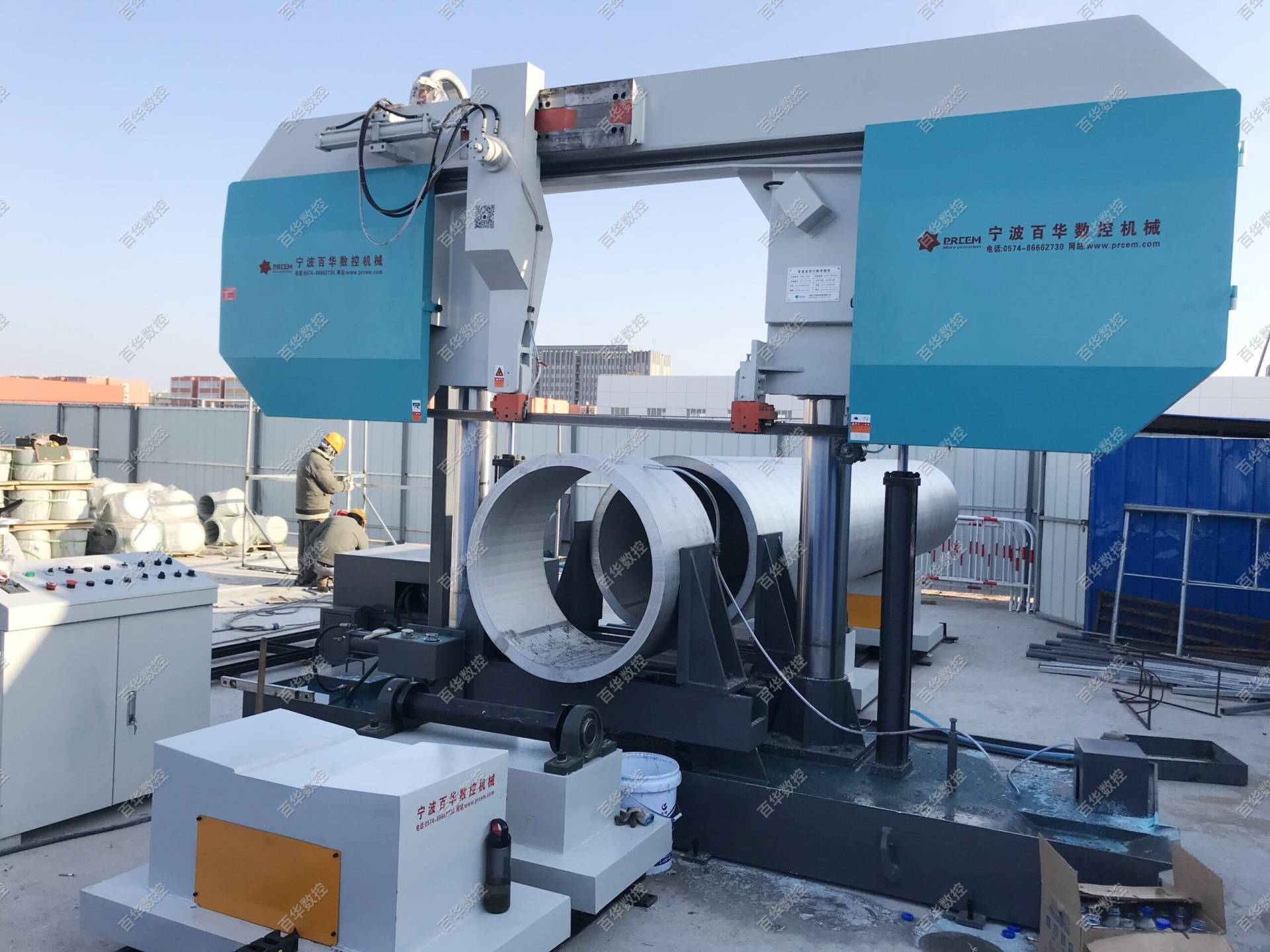

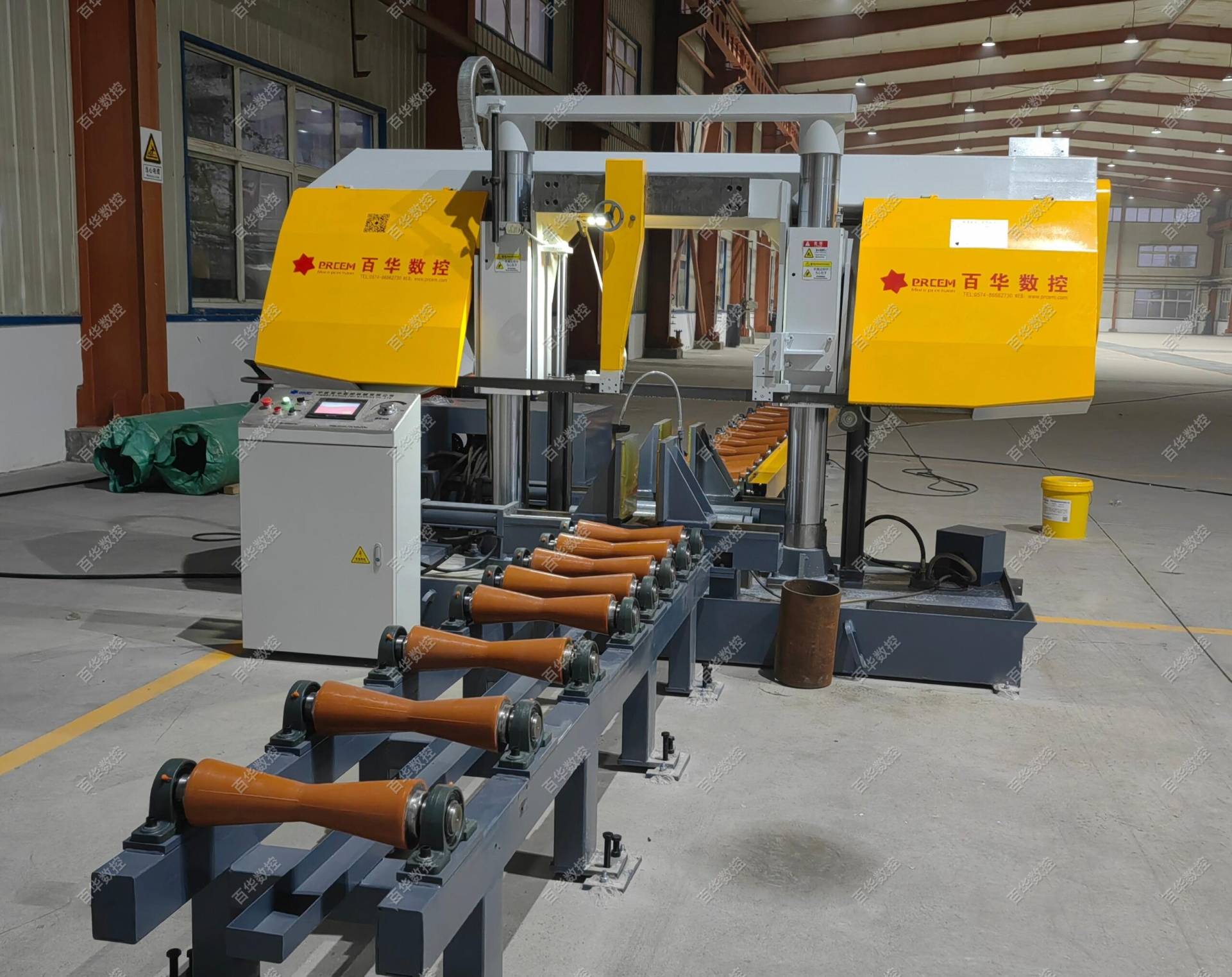

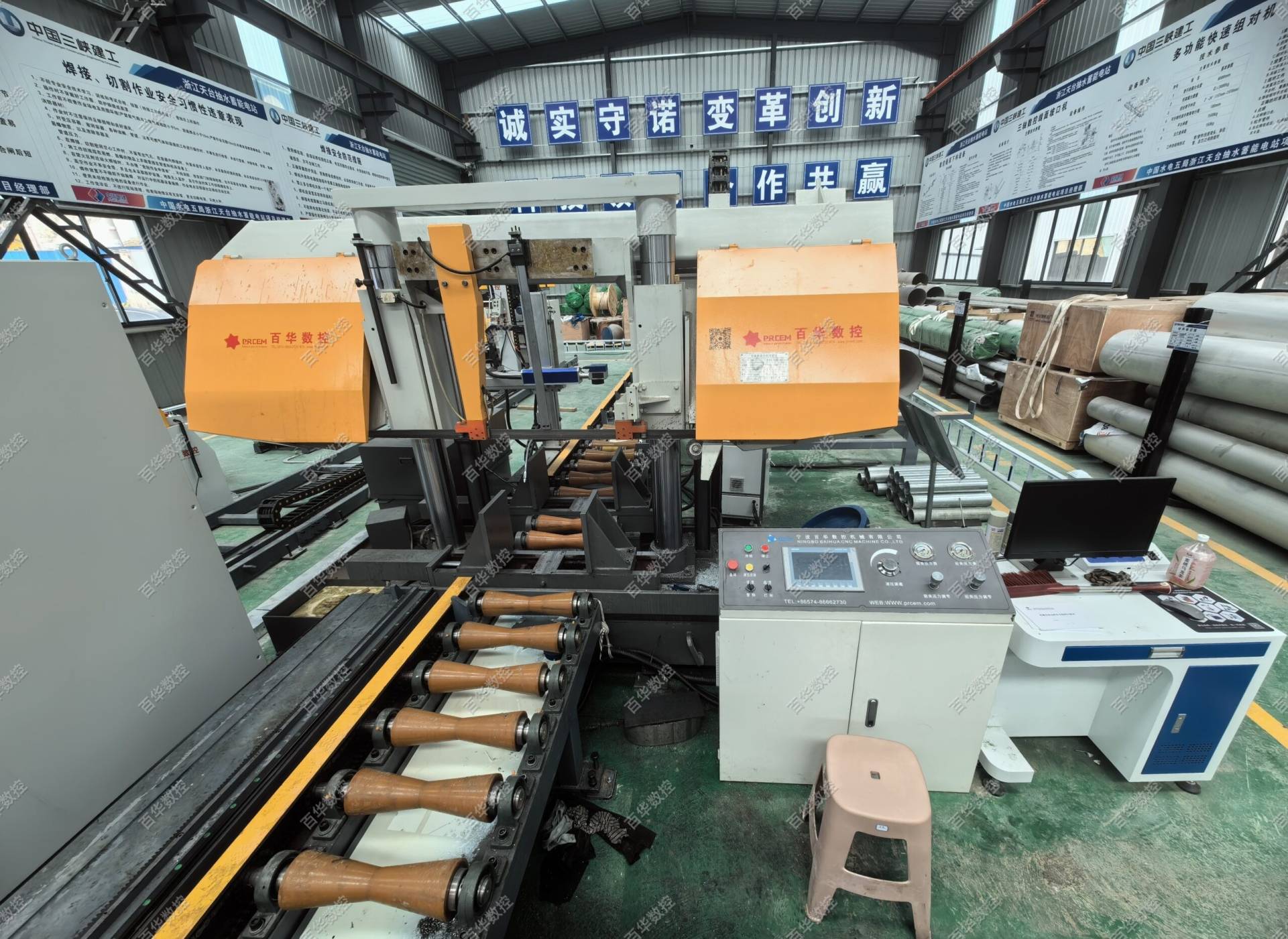

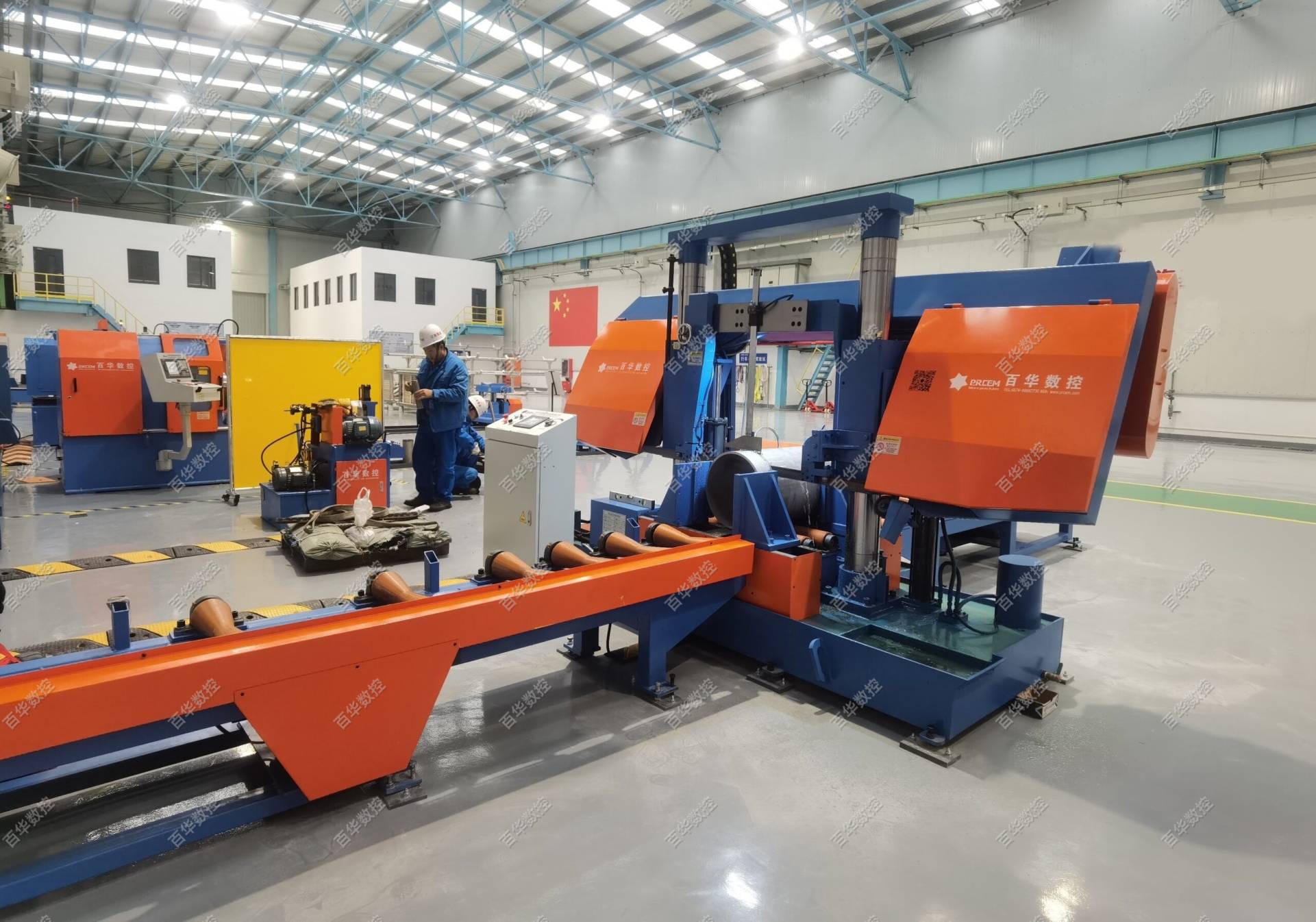

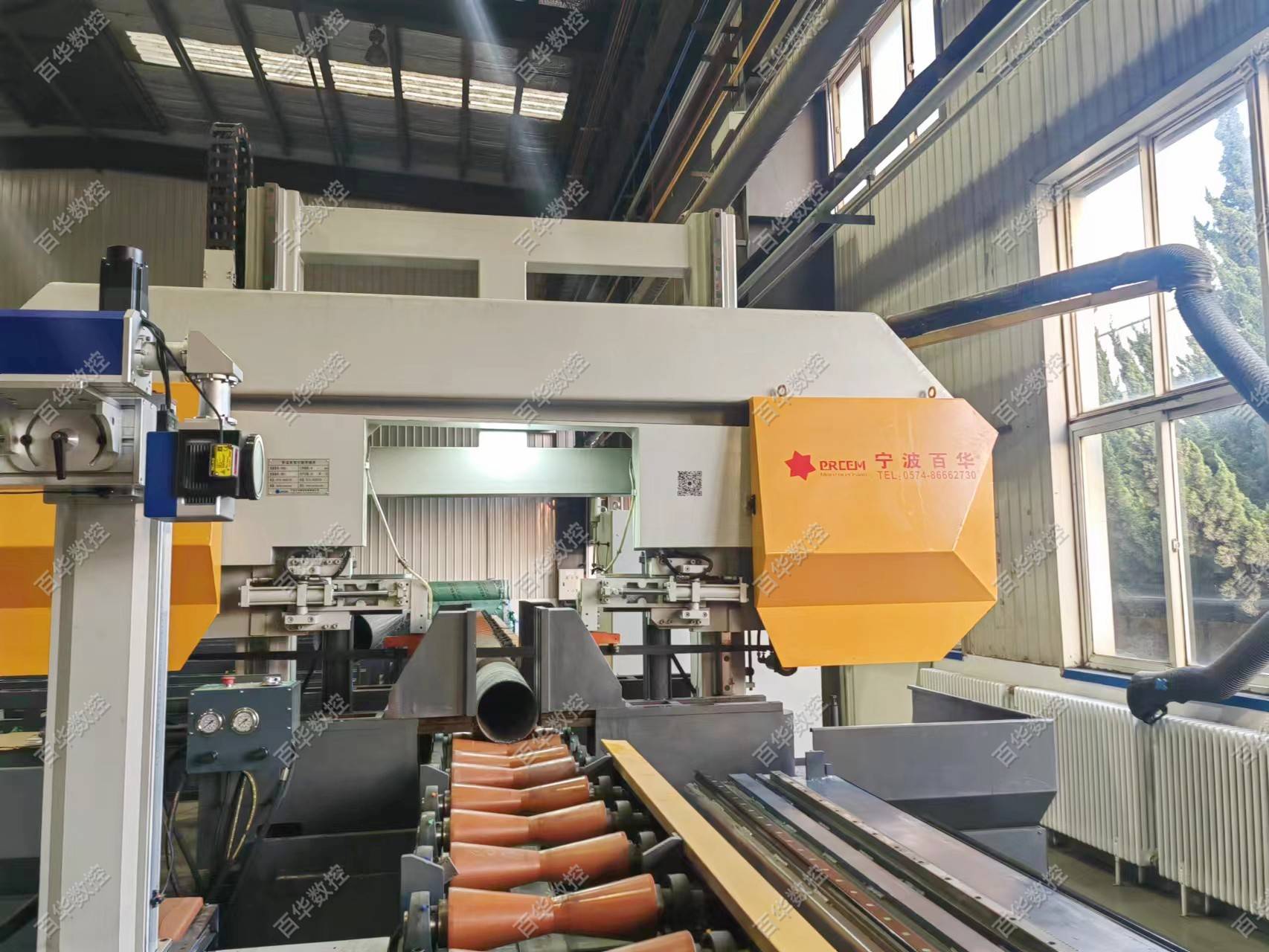

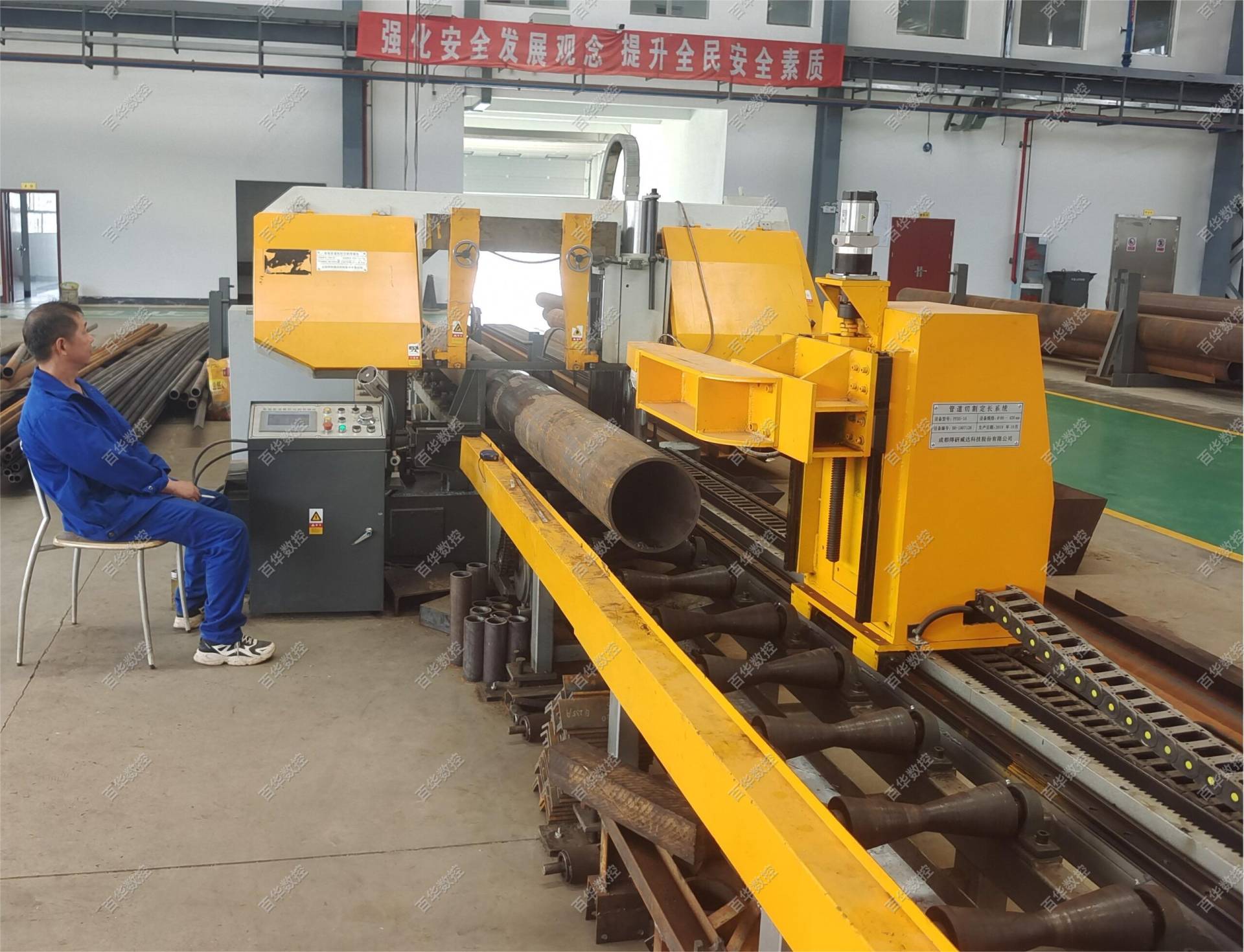

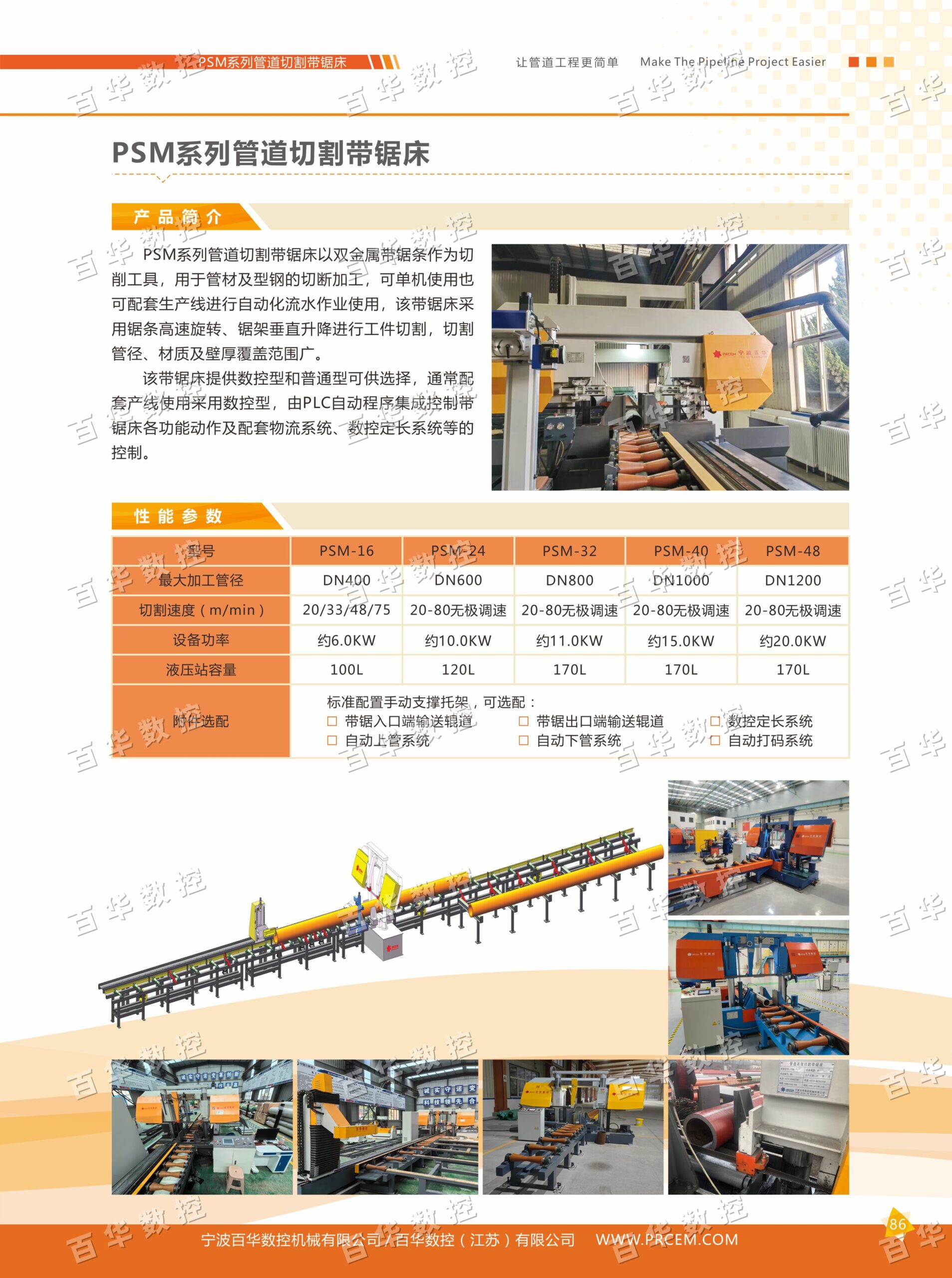

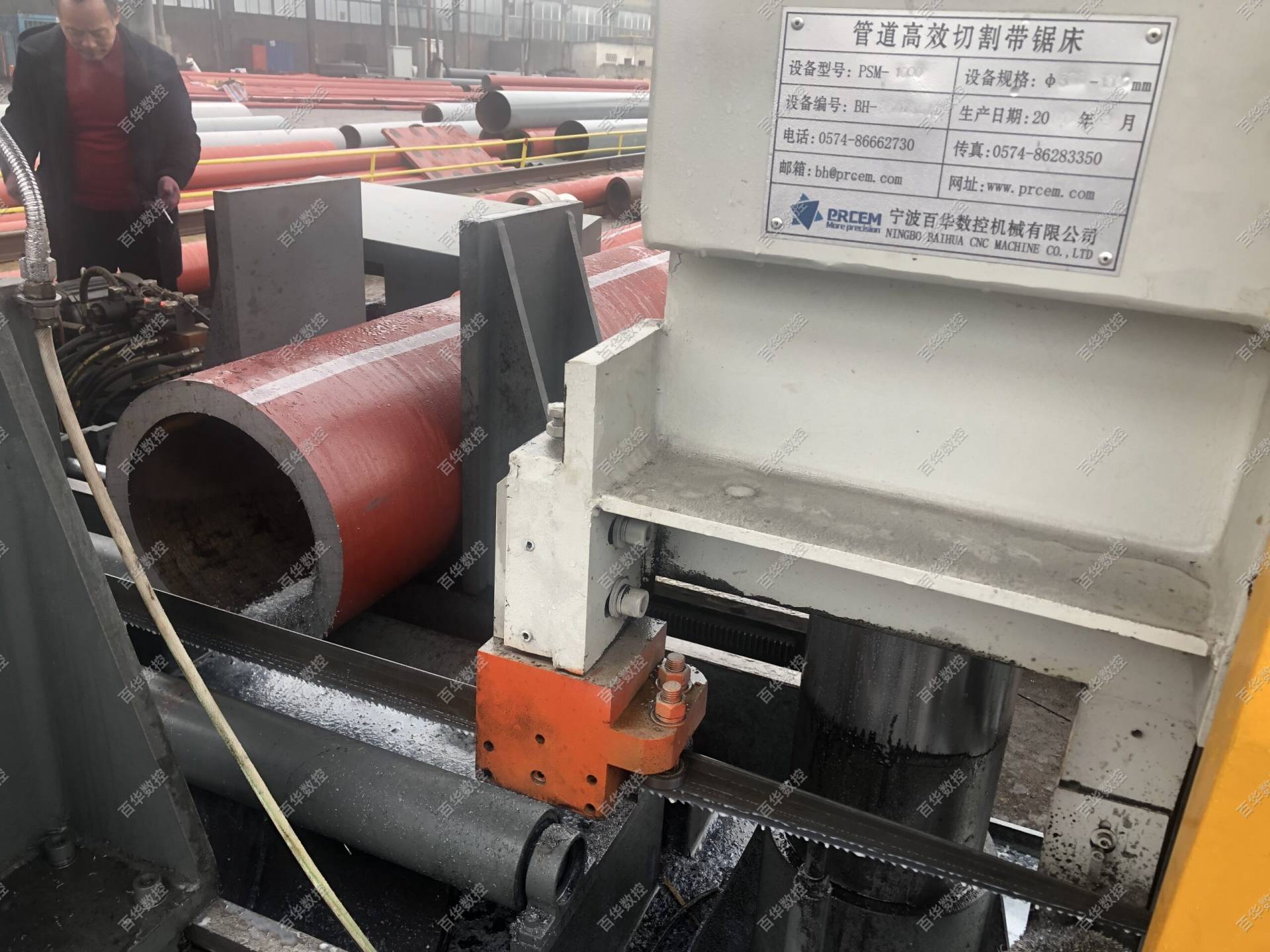

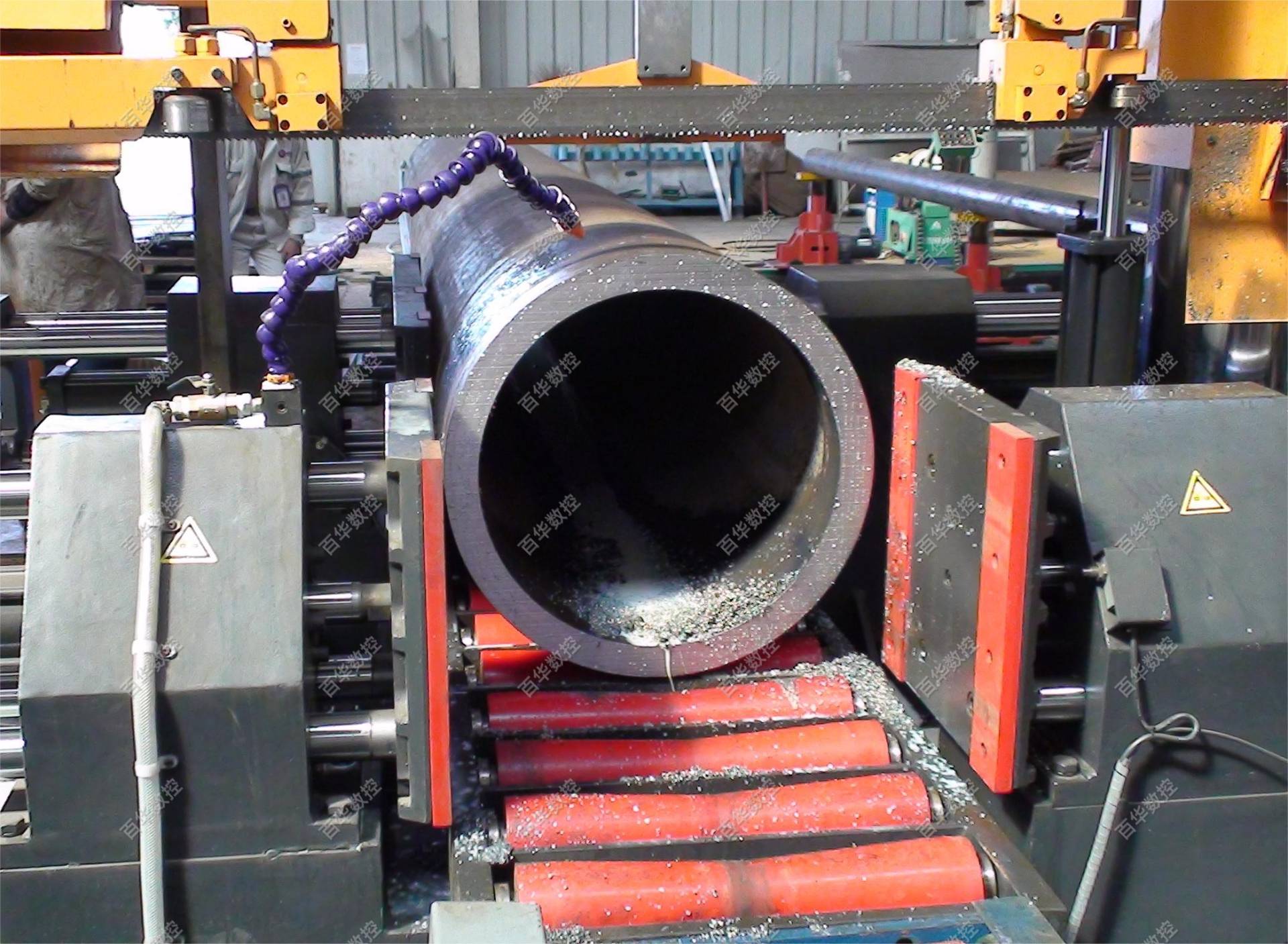

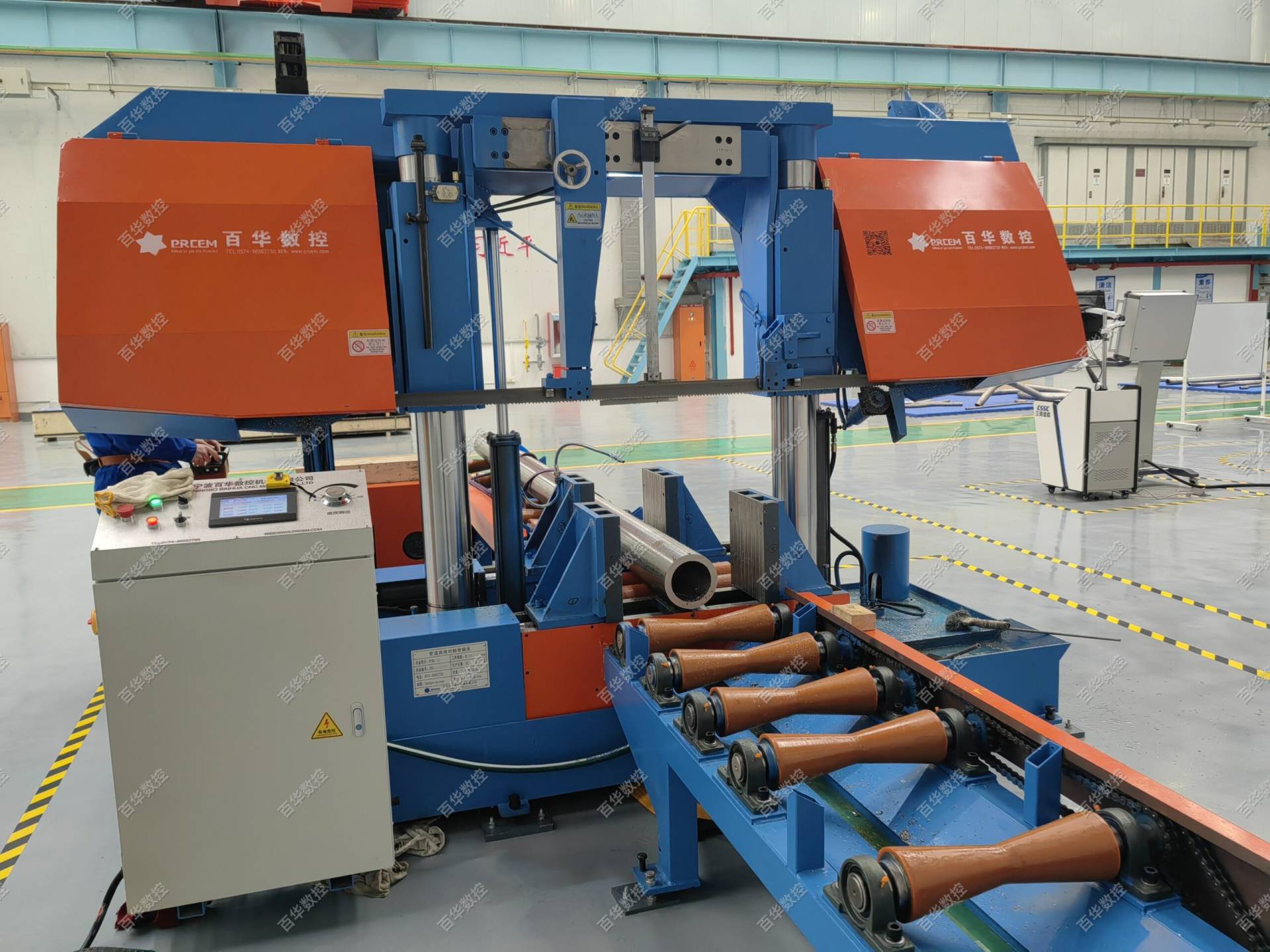

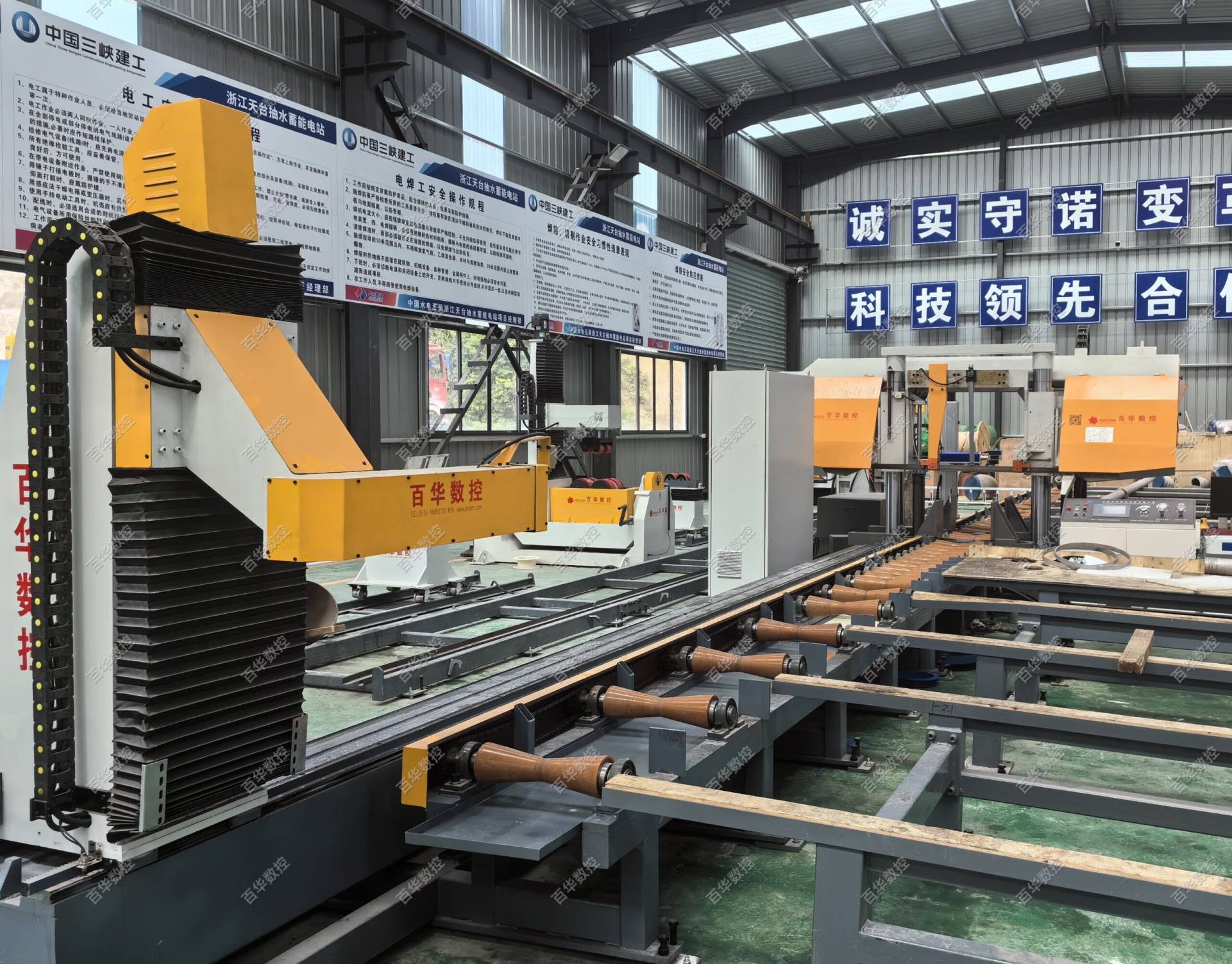

Product Brochure
Showcase product details and real application scenarios from multiple angles
Product Specifications
Overview of models and technical performance metrics
| Model | PSM-16 | PSM-24 | PSM-32 | PSM-40 | PSM-48 |
|---|---|---|---|---|---|
| Maximum processing pipe diameter | DN400 | DN600 | DN800 | DN1000 | DN1200 |
| Cutting speed (m/min) | 20/33/48/75 | 20-80 | 20-80 | 20-80 | 20-80 |
| Equipment power | Approx. 6.0KW | Approx. 10.0KW | Approx. 11.0KW | Approx. 15.0KW | Approx. 20.0KW |
| Hydraulic motor | 1.5KW | 2.2KW | 3KW | 3KW | 4KW |
| Cooling motor power | 0.12KW | 0.12KW | 0.12KW | 0.25KW | 0.25KW |
| Hydraulic station capacity | 100L | 120L | 170L | 170L | 170L |
| Optional accessories |
Manual support bracket as standard configuration; optional:
Bandsaw infeed conveyor roller table
Bandsaw outfeed conveyor roller table
CNC fixed-length system
Automatic pipe loading system
Automatic pipe unloading system
Automatic marking system
|
||||
※ As products are continuously updated and working conditions vary between users in different industries, the configuration and performance parameters are subject to the specifications confirmed at the time of order.
