Product Overview
Solve your business pain points through innovative technical solutions

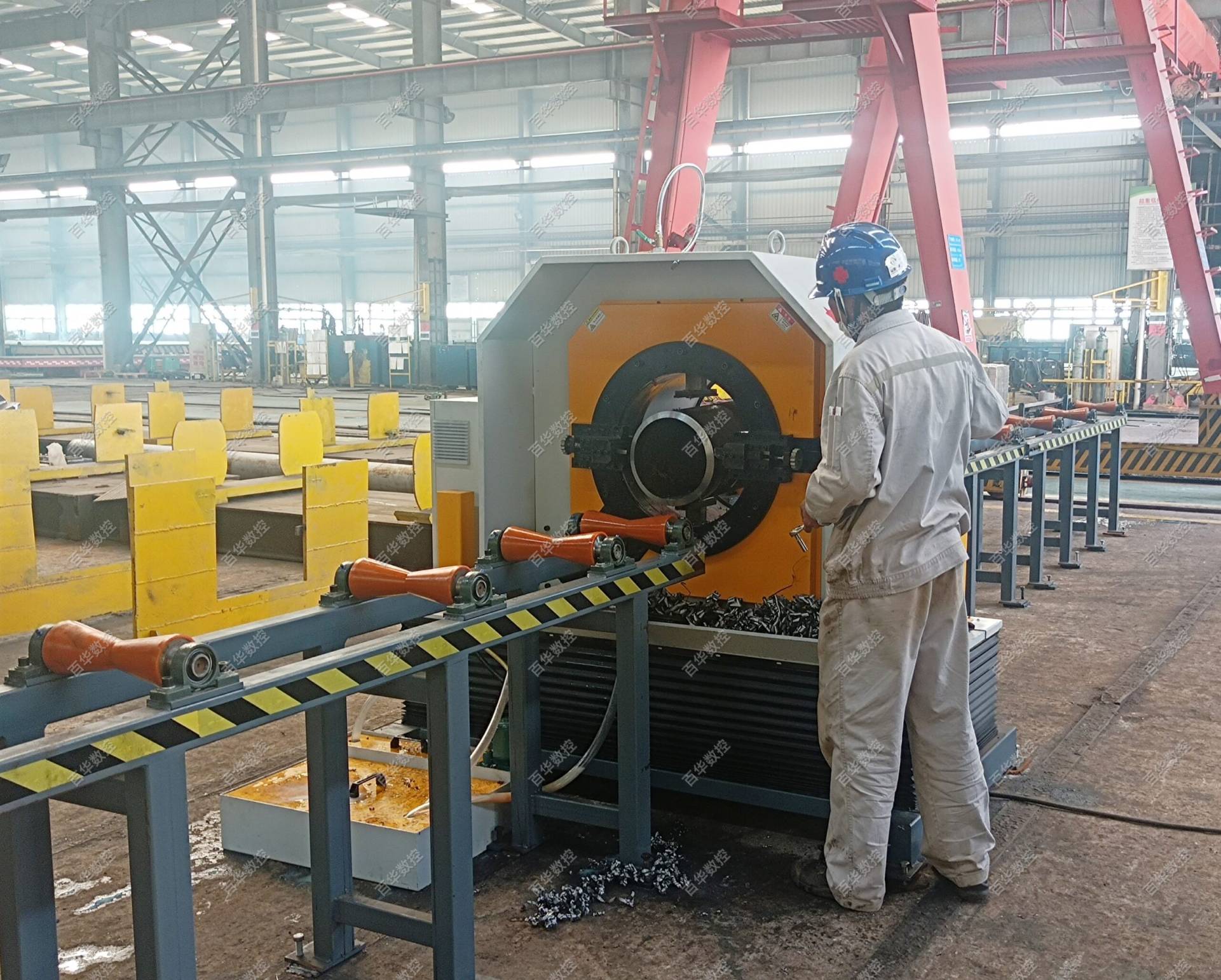

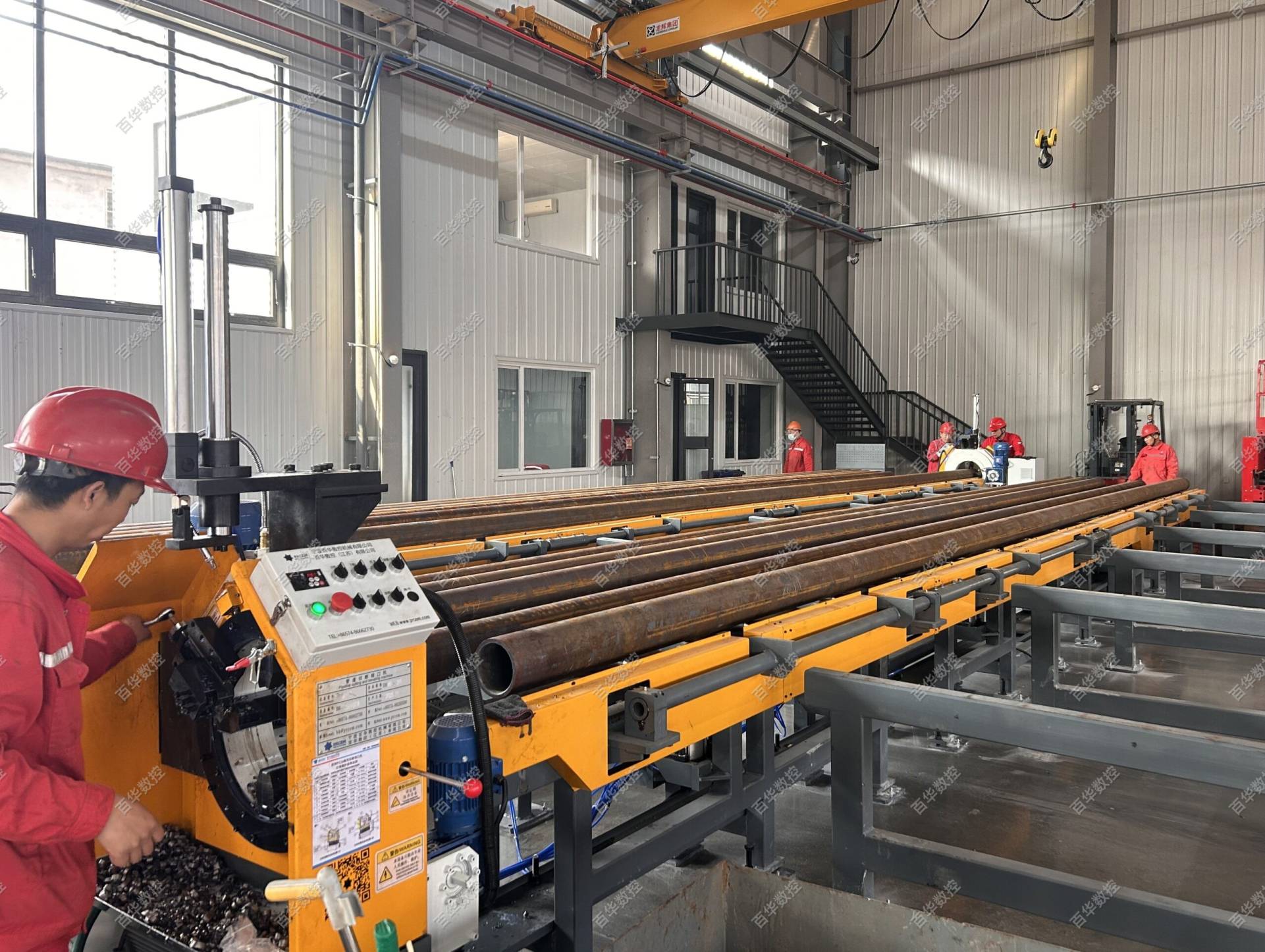

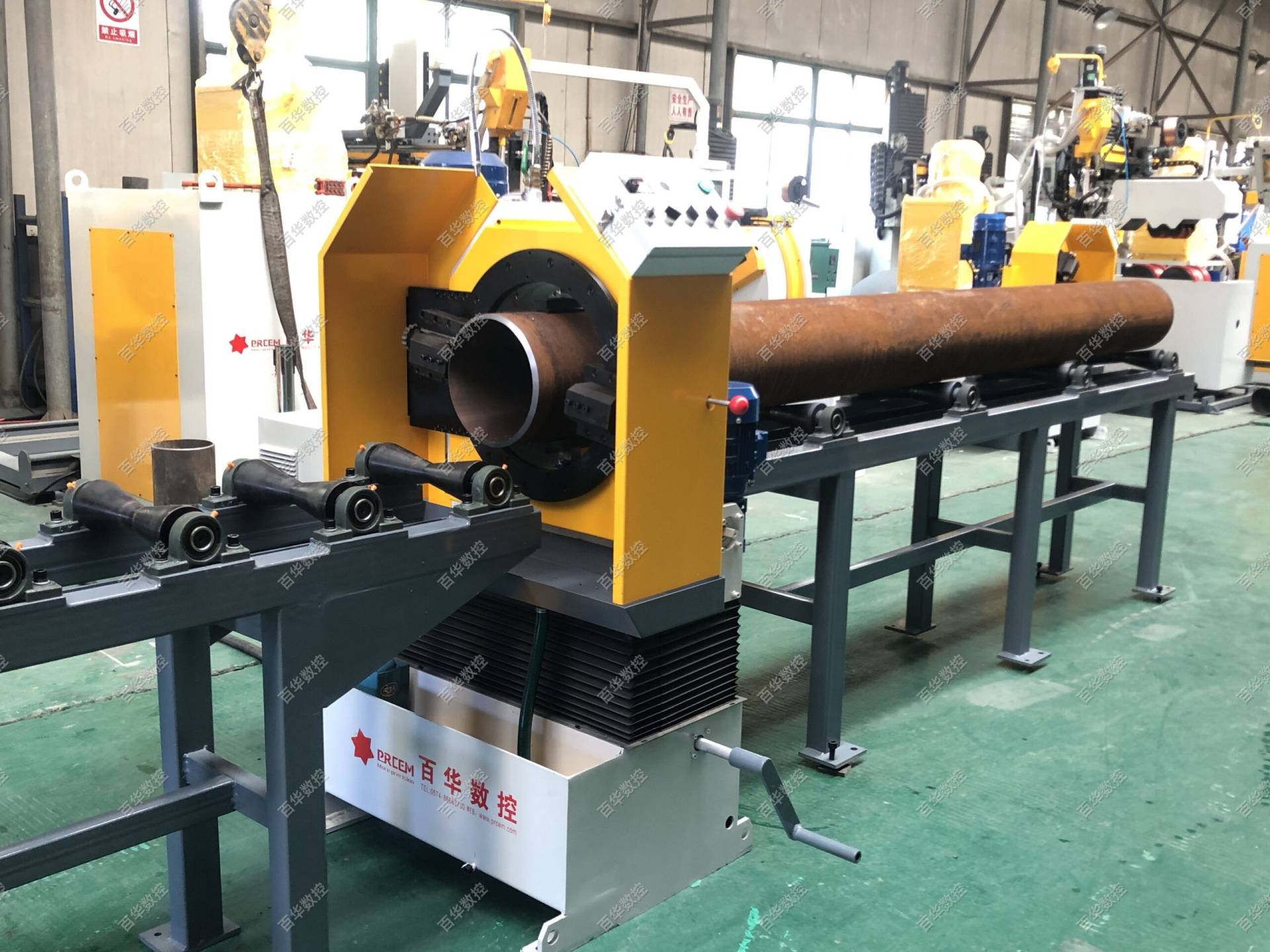

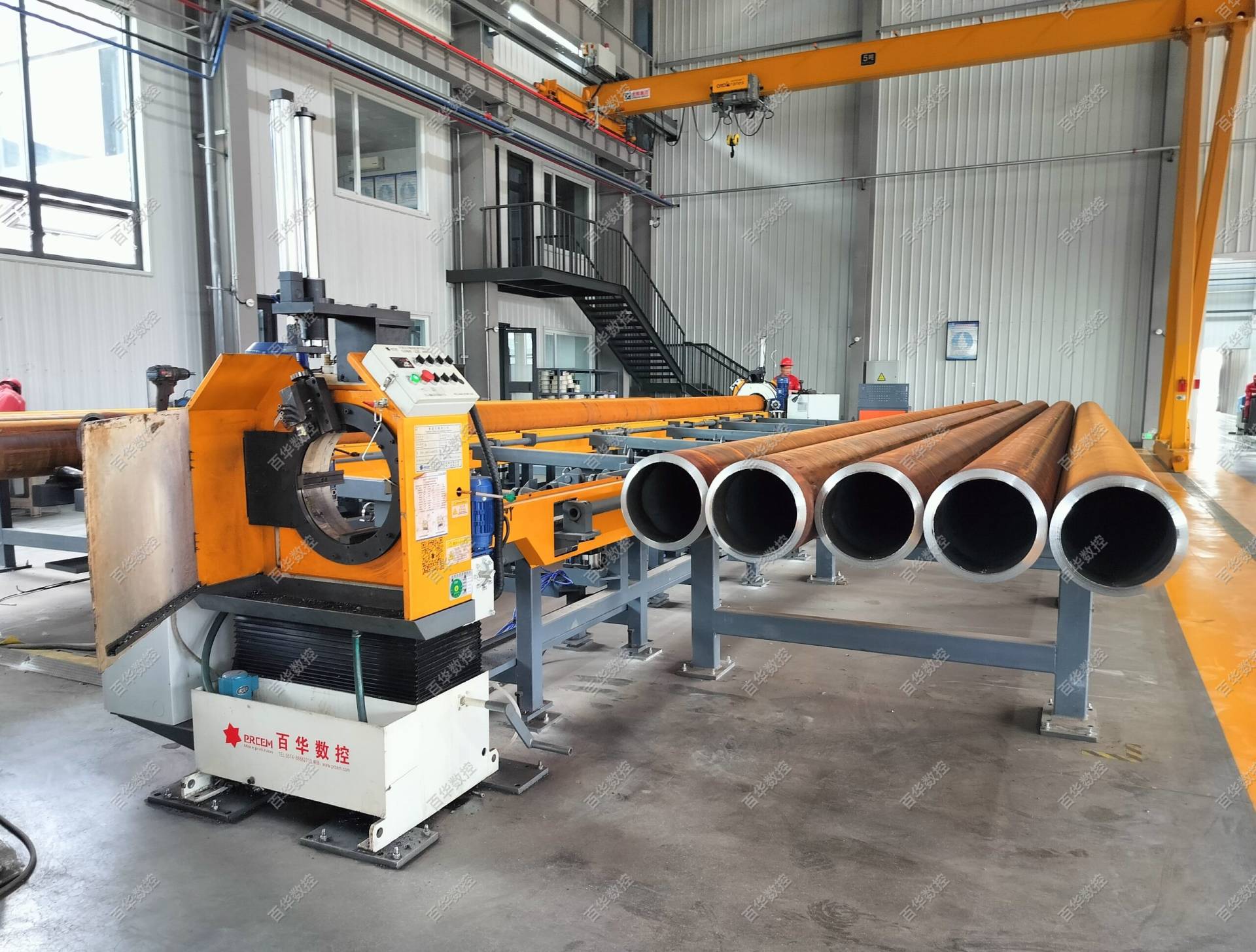

The PCM Series pipe cutting and beveling machine features a compact design and easy operation. After continuous upgrades and more than ten years of iteration, this series offers extremely high machining accuracy, stability, operability, and cost-effectiveness. It is suitable both for fixed operations in workshops and for mobile operations on construction sites. The product line is comprehensive, covering pipe diameters from Ø34 mm to Ø930 mm. The machining mode keeps the pipe clamped and stationary while the cutterhead drives the tool holders to rotate, achieving mechanical ratchet feed. It is mainly used for pipe cutting and beveling. The machine can perform cutting and beveling simultaneously at any position in the middle of the pipe, or it can be used solely for pipe cutting or solely for end-bevel machining.

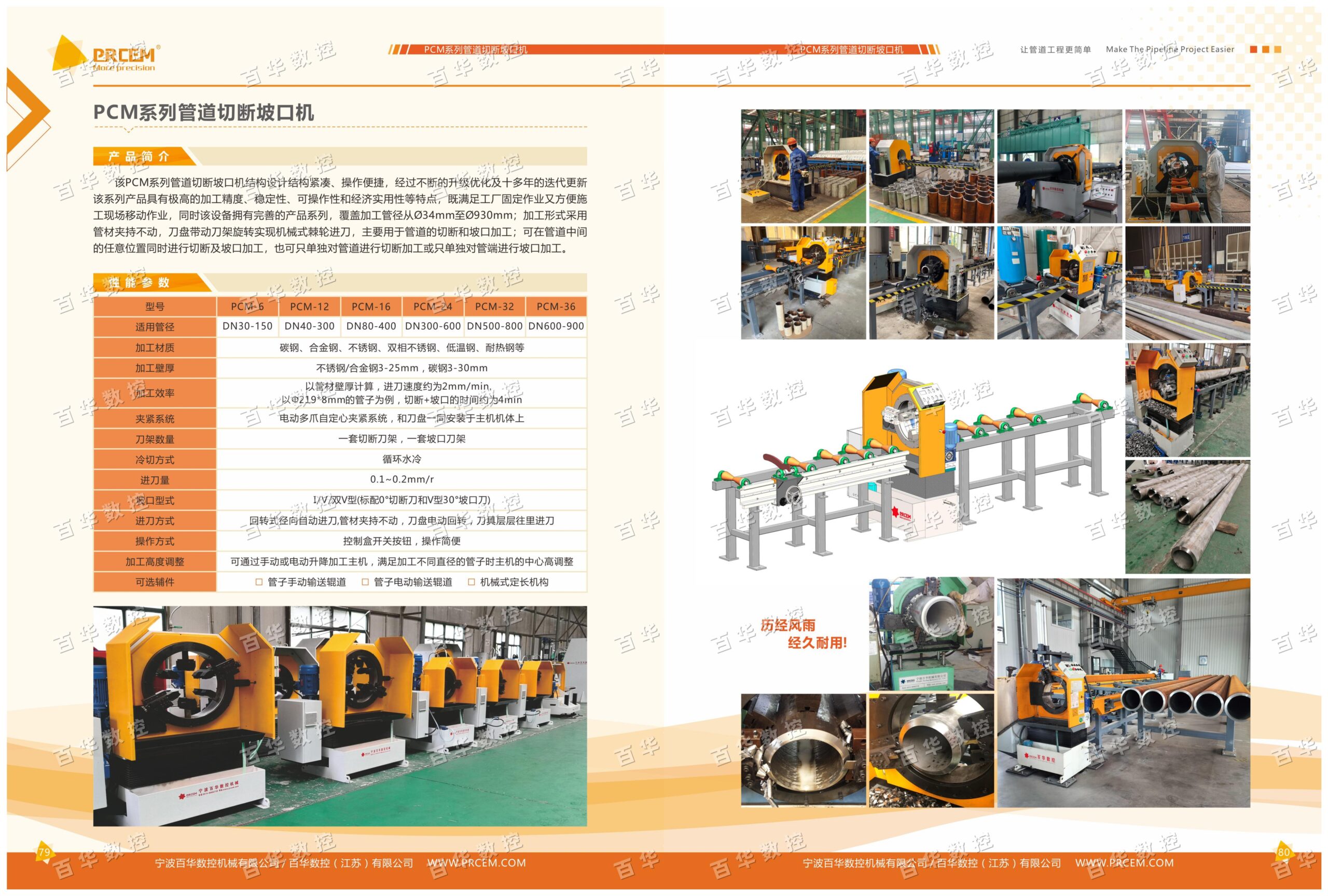

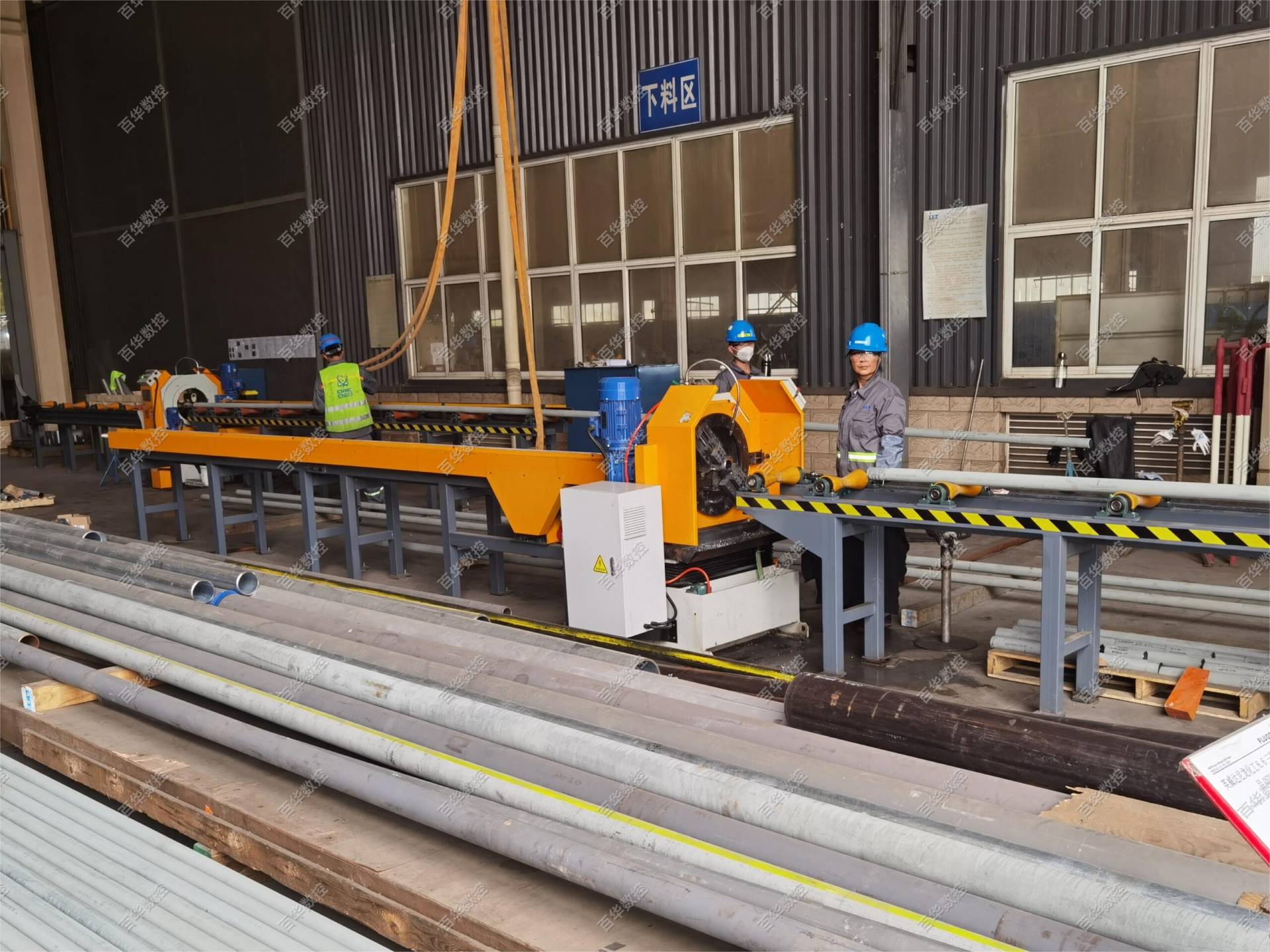

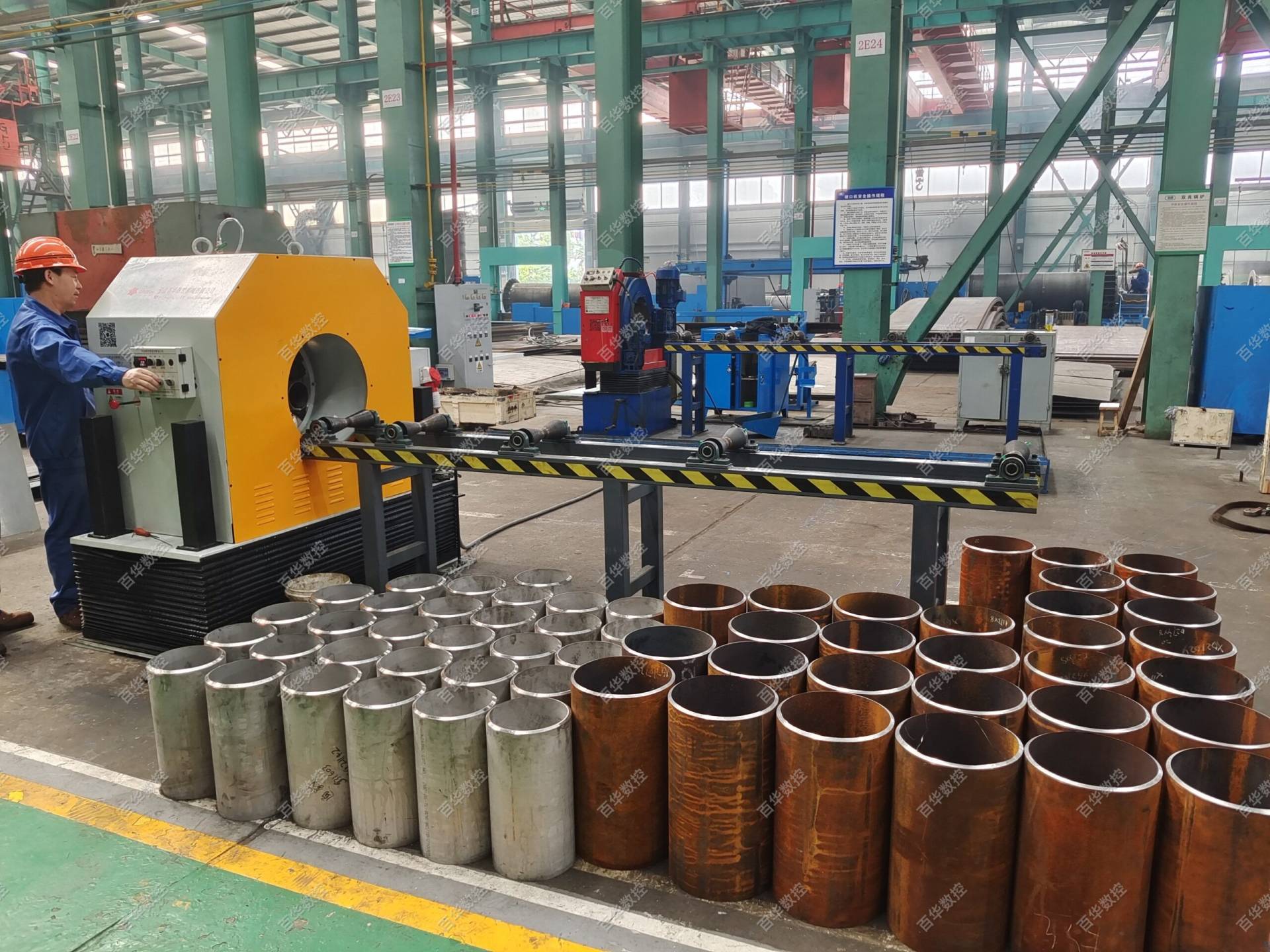

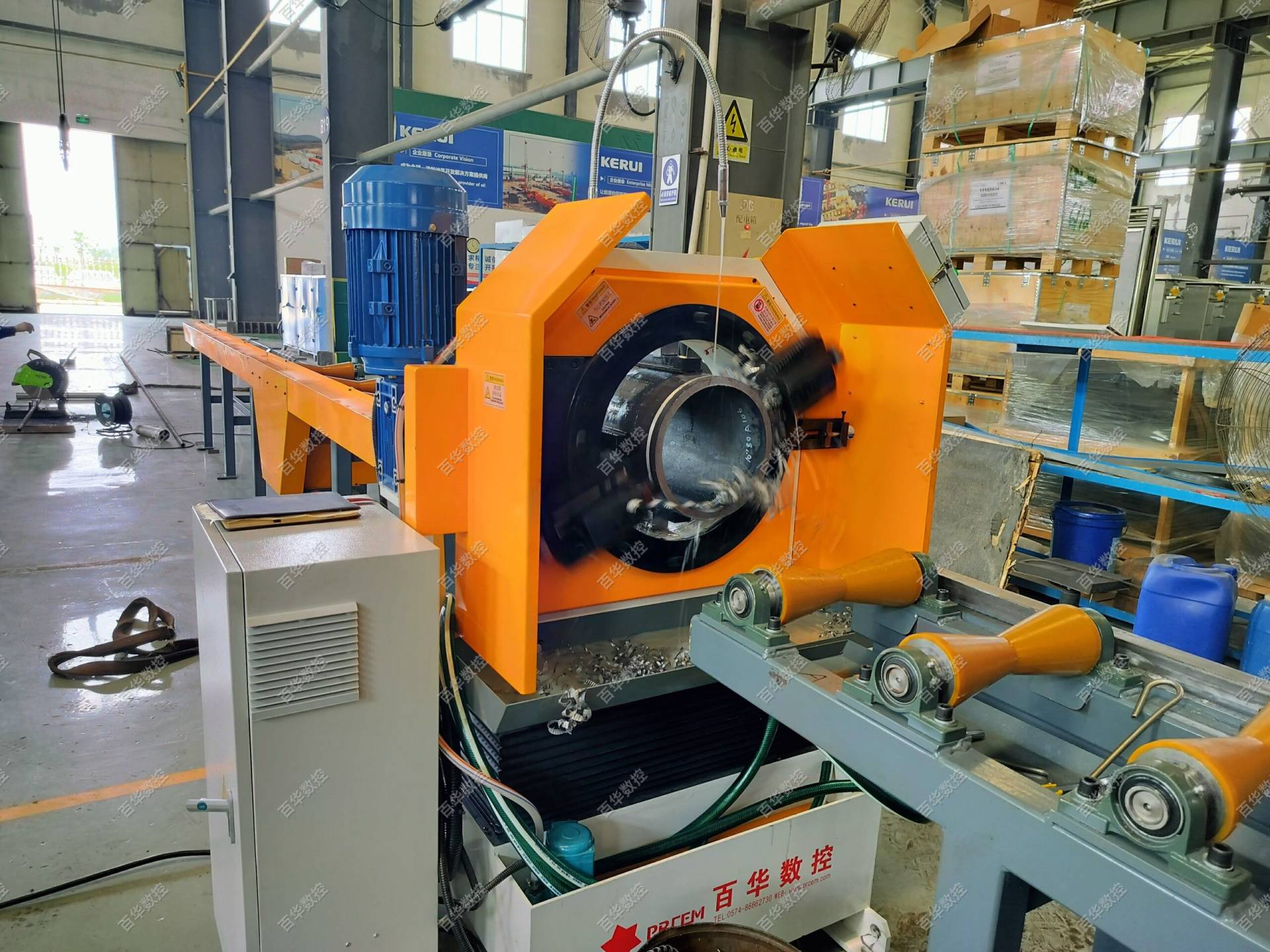

Product Brochure
Showcasing product details and real-world application scenarios from multiple angles
Product Specifications
Overview of specifications, models, and technical performance indicators
| Model | PCM-6 | PCM-12 | PCM-16 | PCM-24 | PCM-32 | PCM-36 |
|---|---|---|---|---|---|---|
| Applicable Pipe Diameter | DN30-150 | DN40-300 | DN80-400 | DN300-600 | DN500-800 | DN600-900 |
| Processing Material | Carbon steel, alloy steel, stainless steel, duplex stainless steel, low-temperature steel, heat-resistant steel, etc. | |||||
| Processing Wall Thickness | Stainless steel/alloy steel 3–25 mm; carbon steel 3–30 mm | |||||
| Processing Efficiency |
Calculated based on pipe wall thickness, feed speed is about 2 mm/min,
for example, for a pipe of Φ219×8 mm, cutting plus beveling takes about 4 minutes.
|
|||||
| Clamping System | Electric multi-jaw self-centering clamping system, mounted on the main machine body together with the cutterhead | |||||
| Number of Tool Holders | One set of cutting tool holder and one set of beveling tool holder | |||||
| Cold Cutting Method | Circulating water cooling | |||||
| Feed Rate | 0.1–0.2 mm/r | |||||

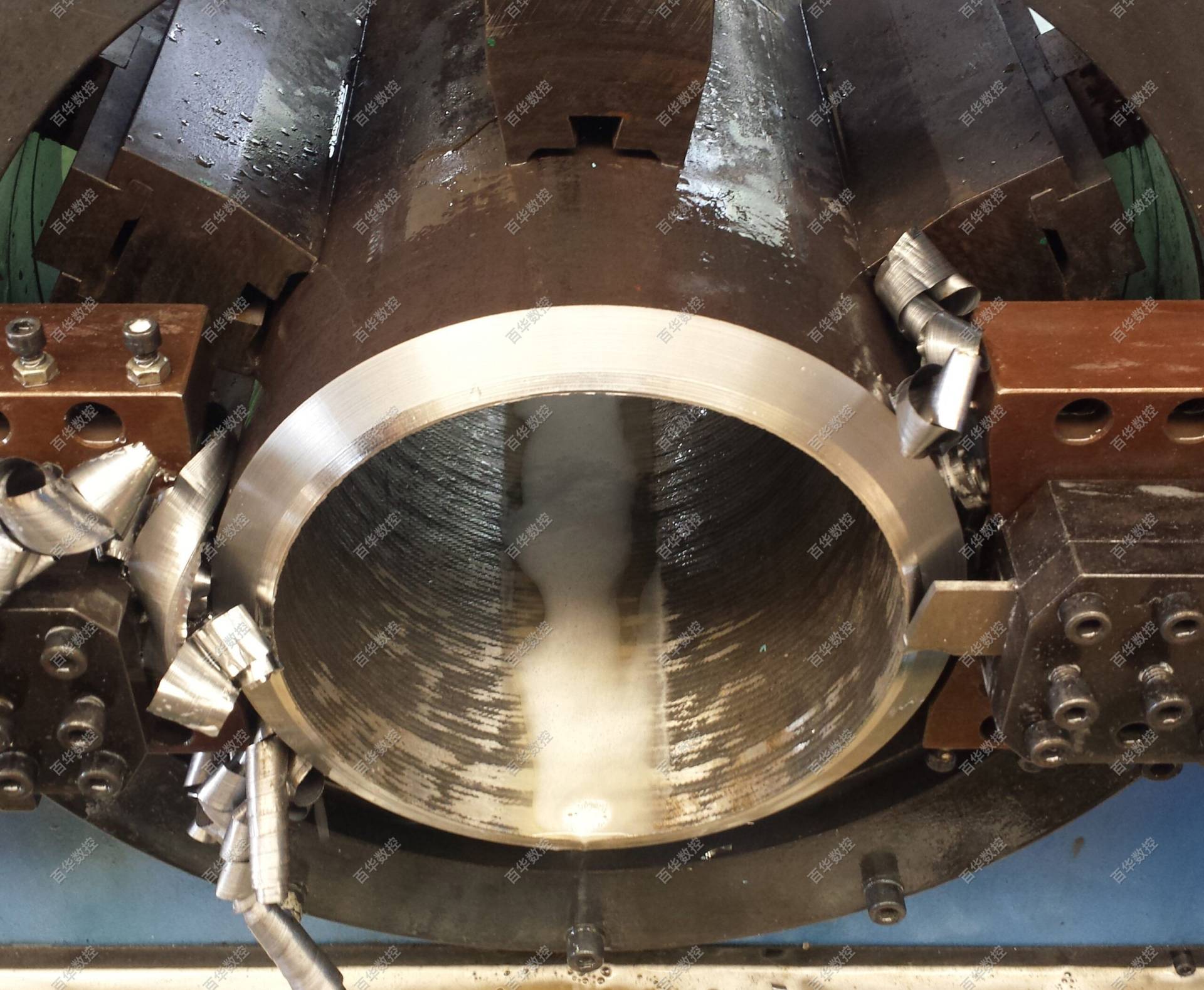

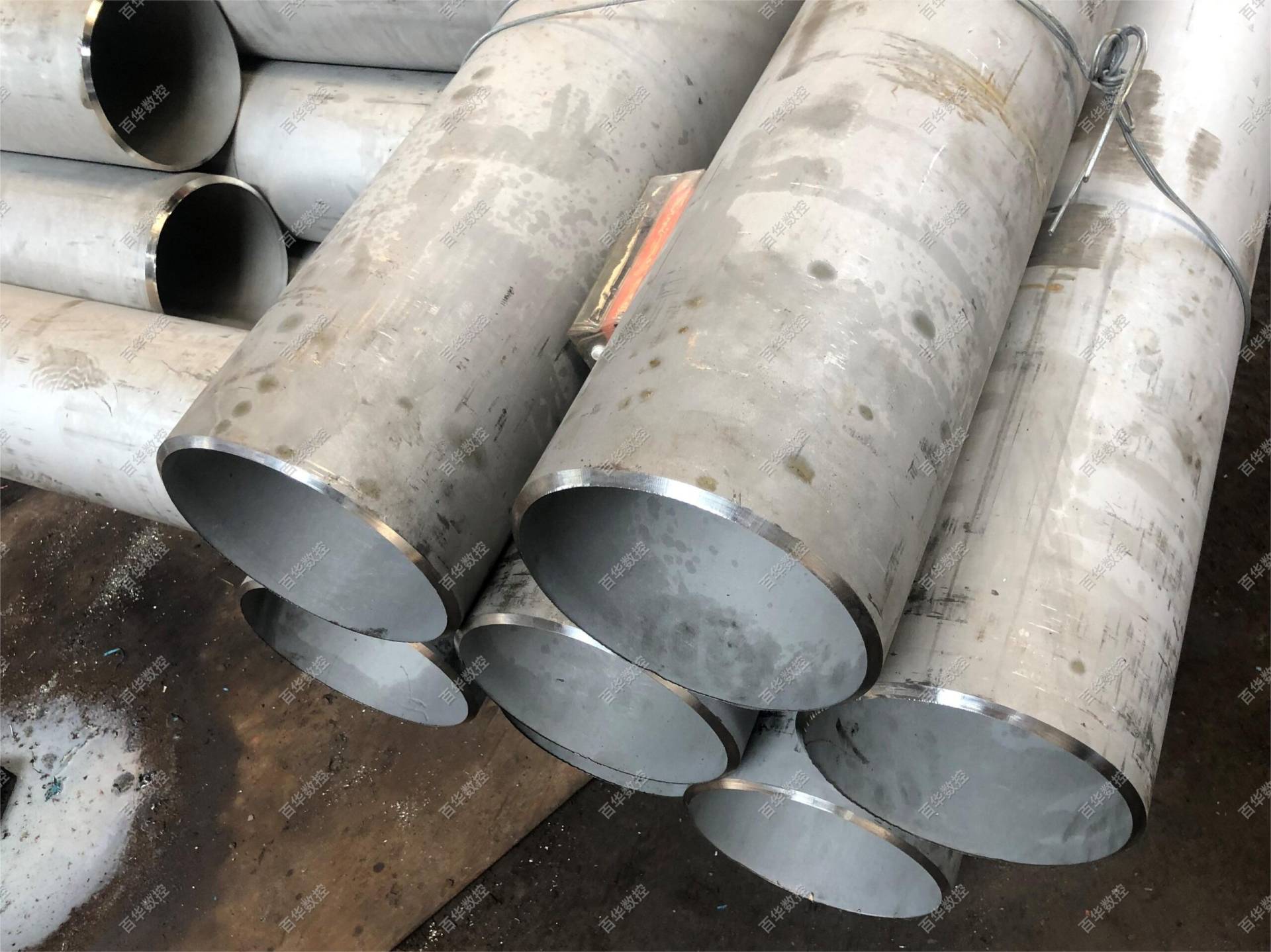

| Bevel Type |
I / V / double-V type
(standard configuration: 0° cutting tool and 30° V-type beveling tool)
|
|||||
| Machining Accuracy | Perpendicularity of bevel end face ≤ 1 mm; surface roughness ≤ Ra 6.3; angle deviation ≤ 0.5° | |||||
| Feeding Method | Rotary radial automatic feed: the pipe is clamped and remains stationary, the cutterhead is electrically driven to rotate, and the tool feeds inward layer by layer | |||||
| Operation Mode | Control box with push-button switches, easy to operate | |||||
| Height Adjustment | The machining head is raised and lowered manually or electrically to adjust the center height for pipes of different diameters | |||||
| Optional Accessories |

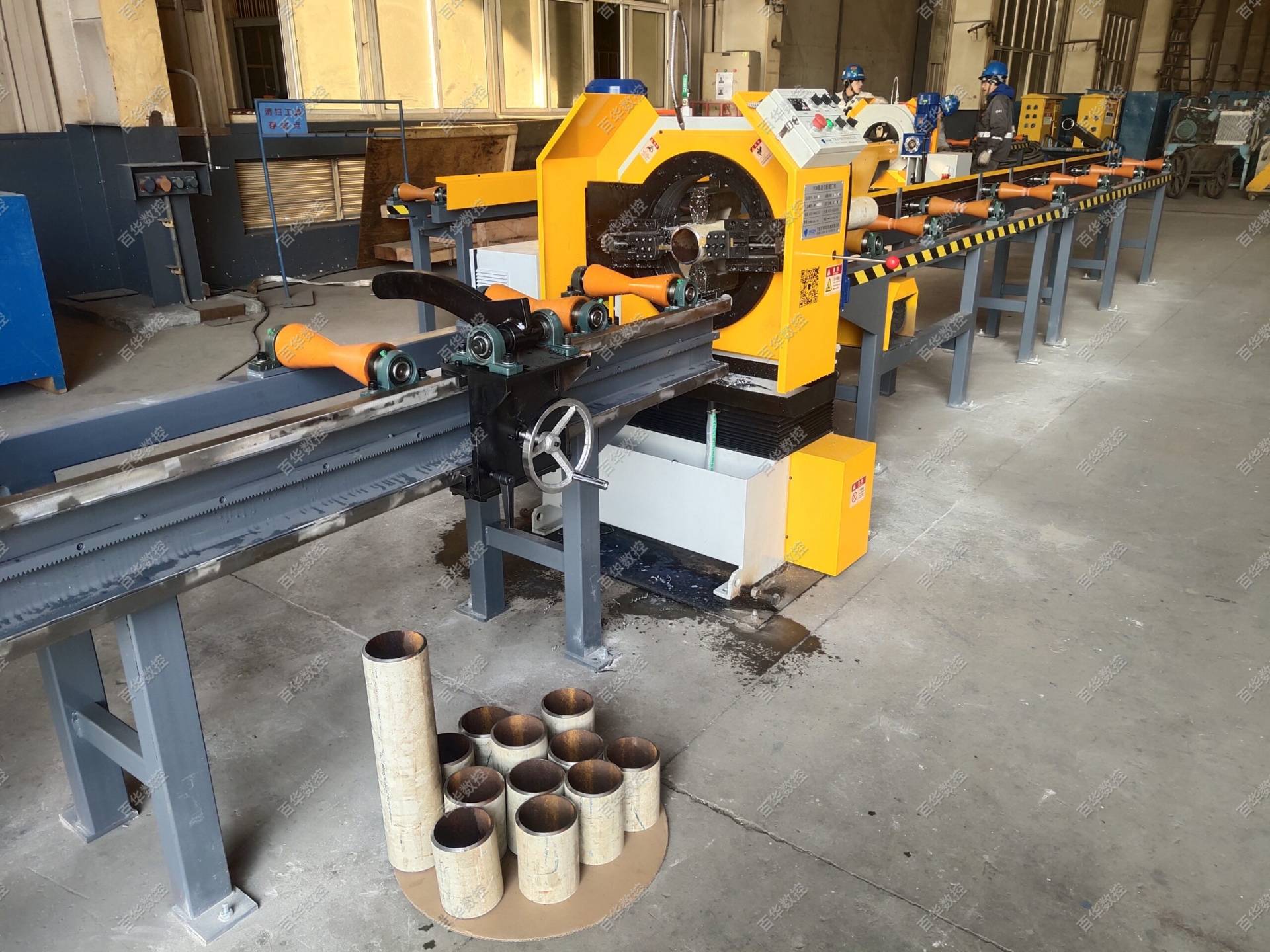

Manual pipe roller conveyor
Powered pipe roller conveyor
Mechanical fixed-length device
|
|||||
※ As products are continuously upgraded and working conditions vary among users in different industries, the configuration and performance parameters are subject to those confirmed at the time of order.
