Product Overview
Address your business pain points with innovative technical solutions
The PAM Series CNC pipe cutting and beveling machine is a fully automatic CNC specialized machine tool for pipe cutting and beveling. Developed on the basis of our CTA Series CNC cutting and beveling machines, it is an economical product designed to meet the diverse needs of different users and applications. It is particularly suitable for rapid cutting and beveling of medium- and thin-wall pipes. The pipe is clamped in place while the cutter head rotates for machining. The PLC numerical control system realizes fully automatic control of the machining process, and the human-machine interface is used to preset, store, and call up machining programs. It is currently an advanced and highly efficient pipe cutting and beveling machine both in China and abroad.

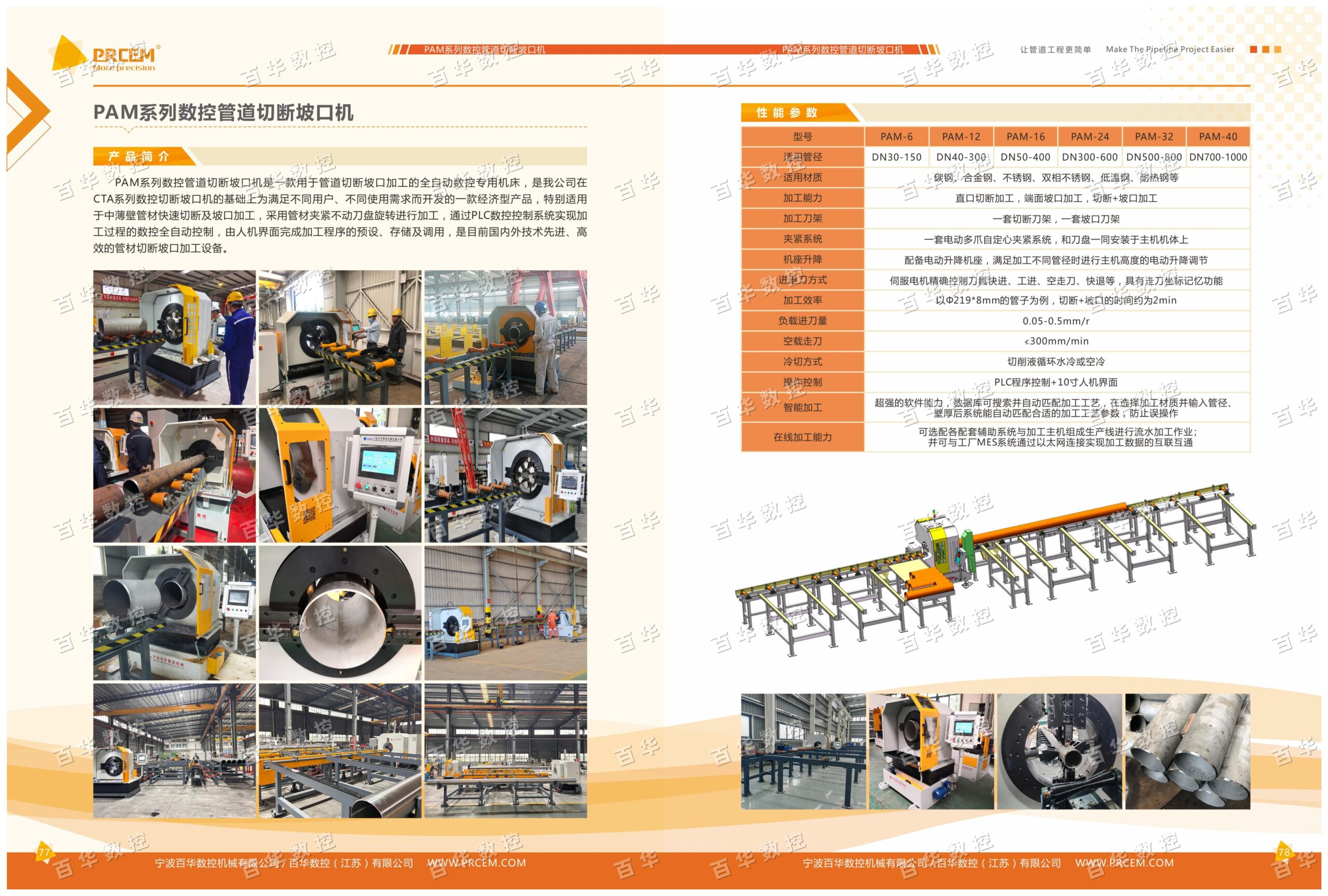

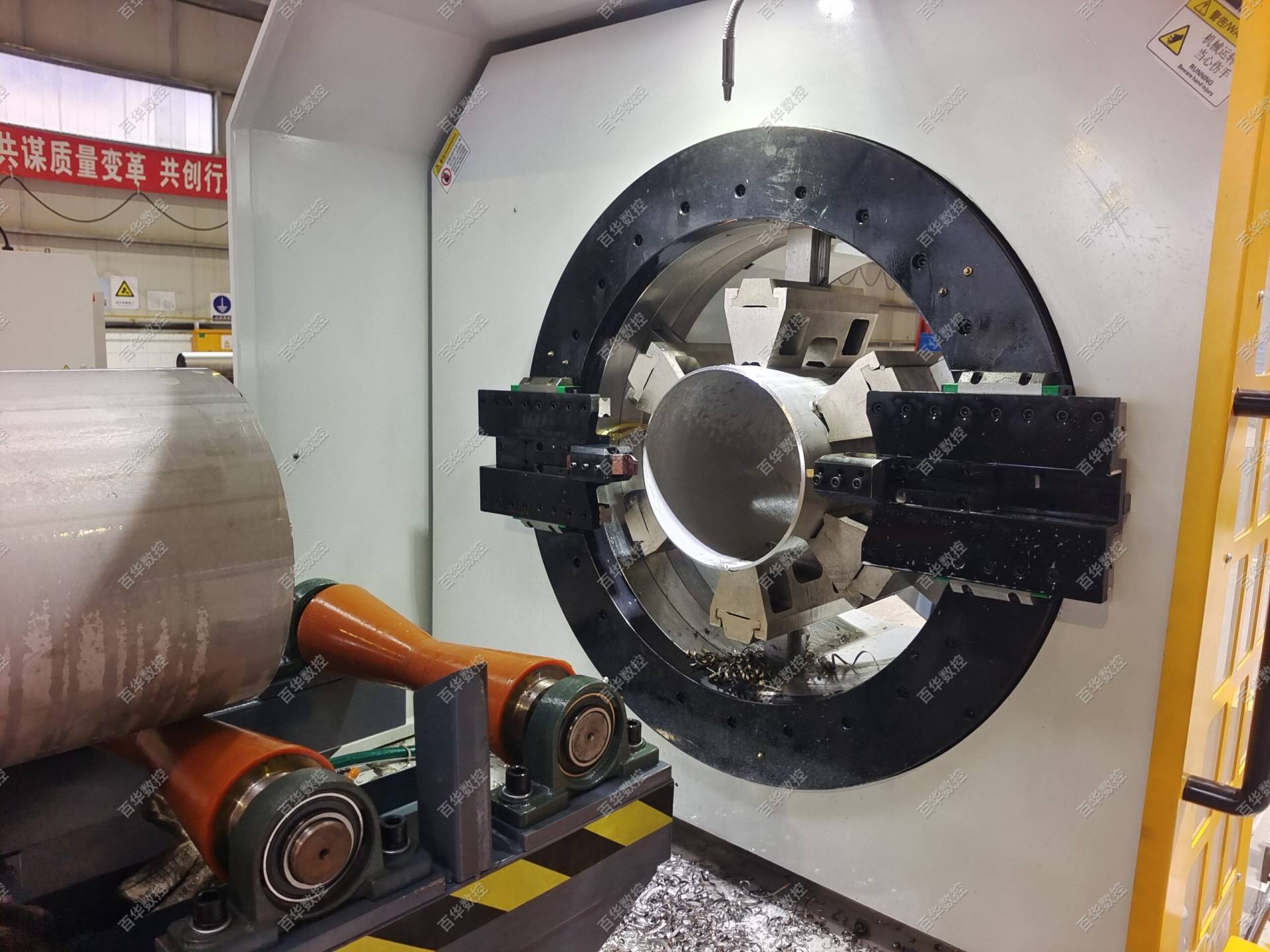

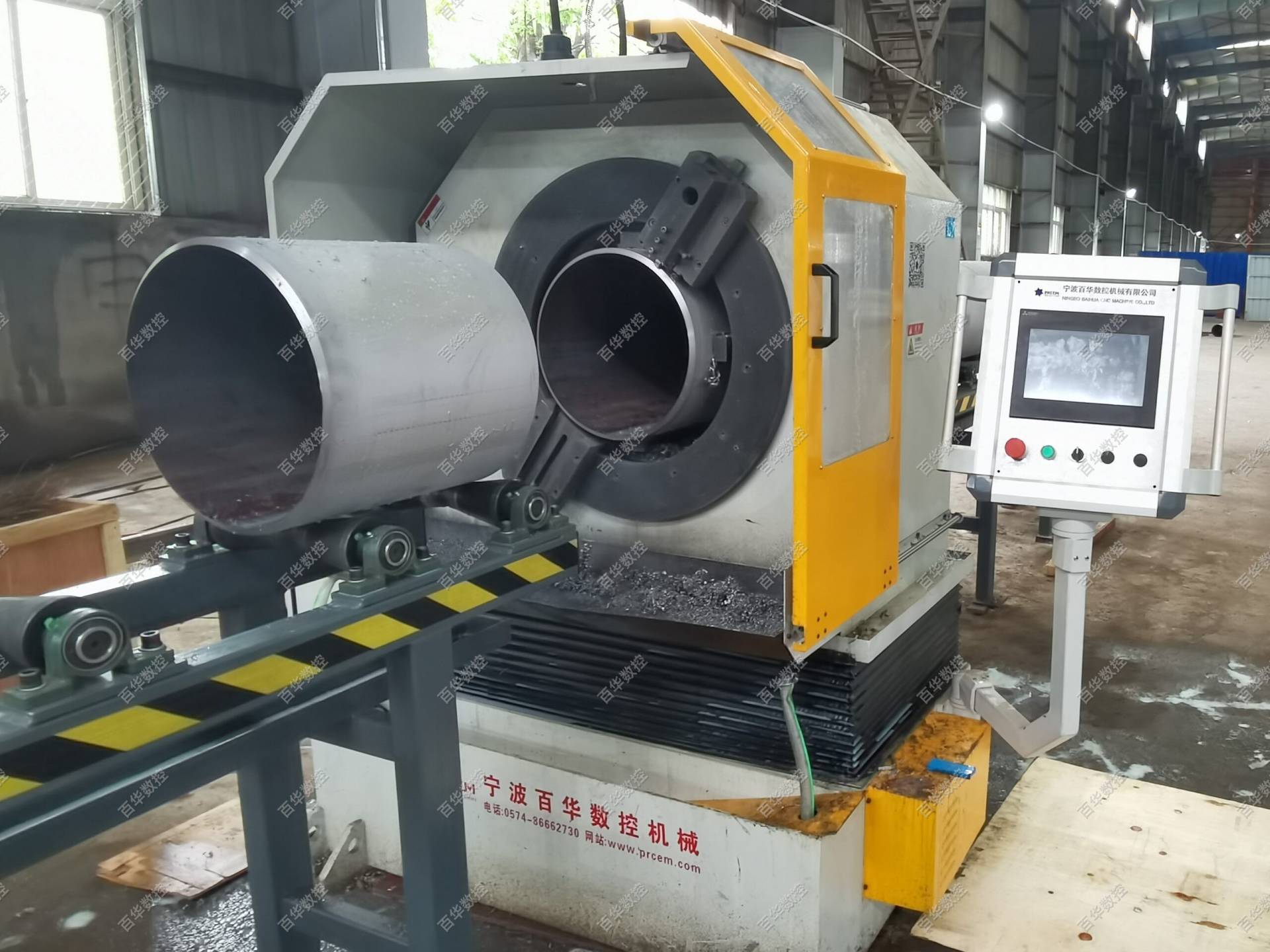

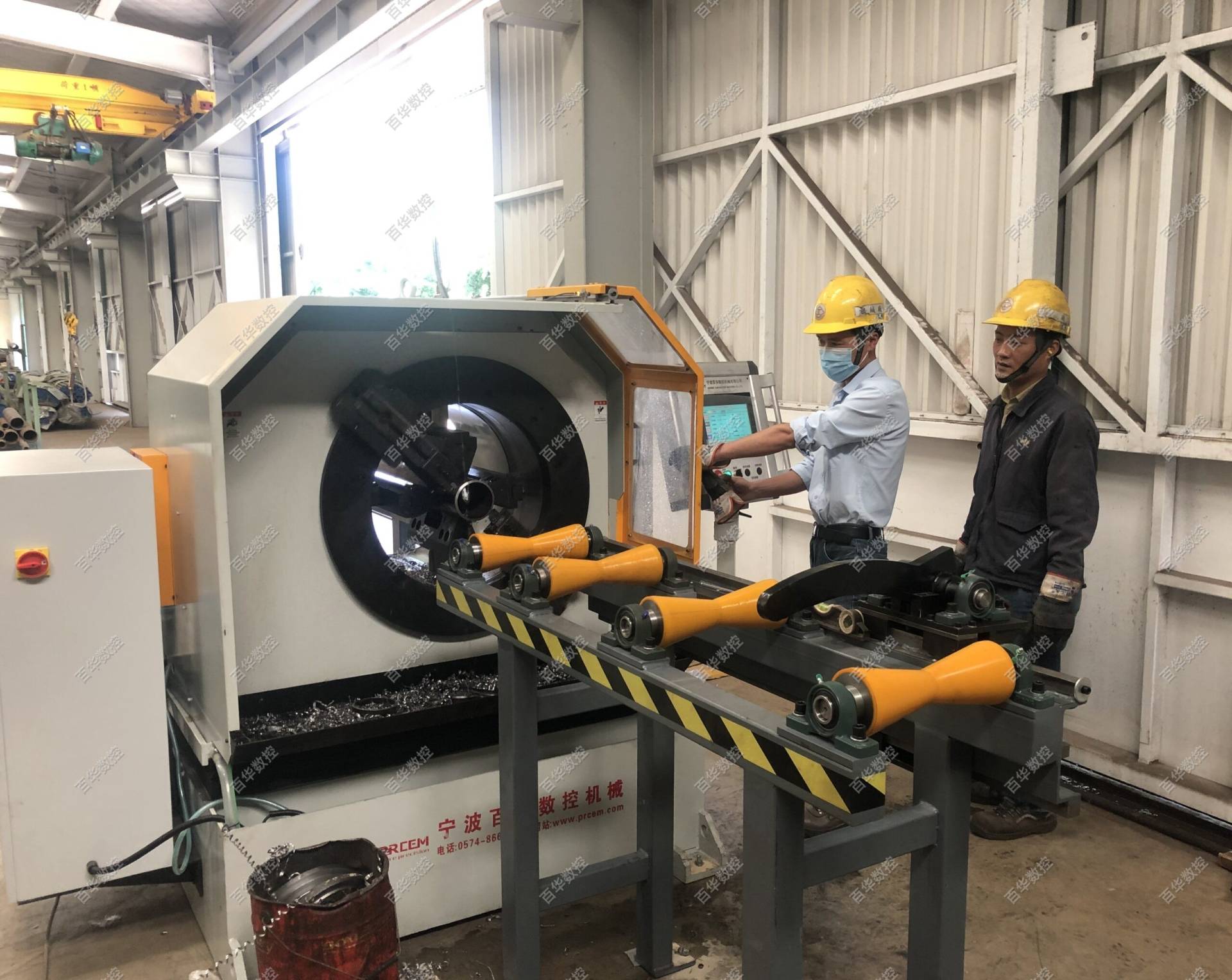

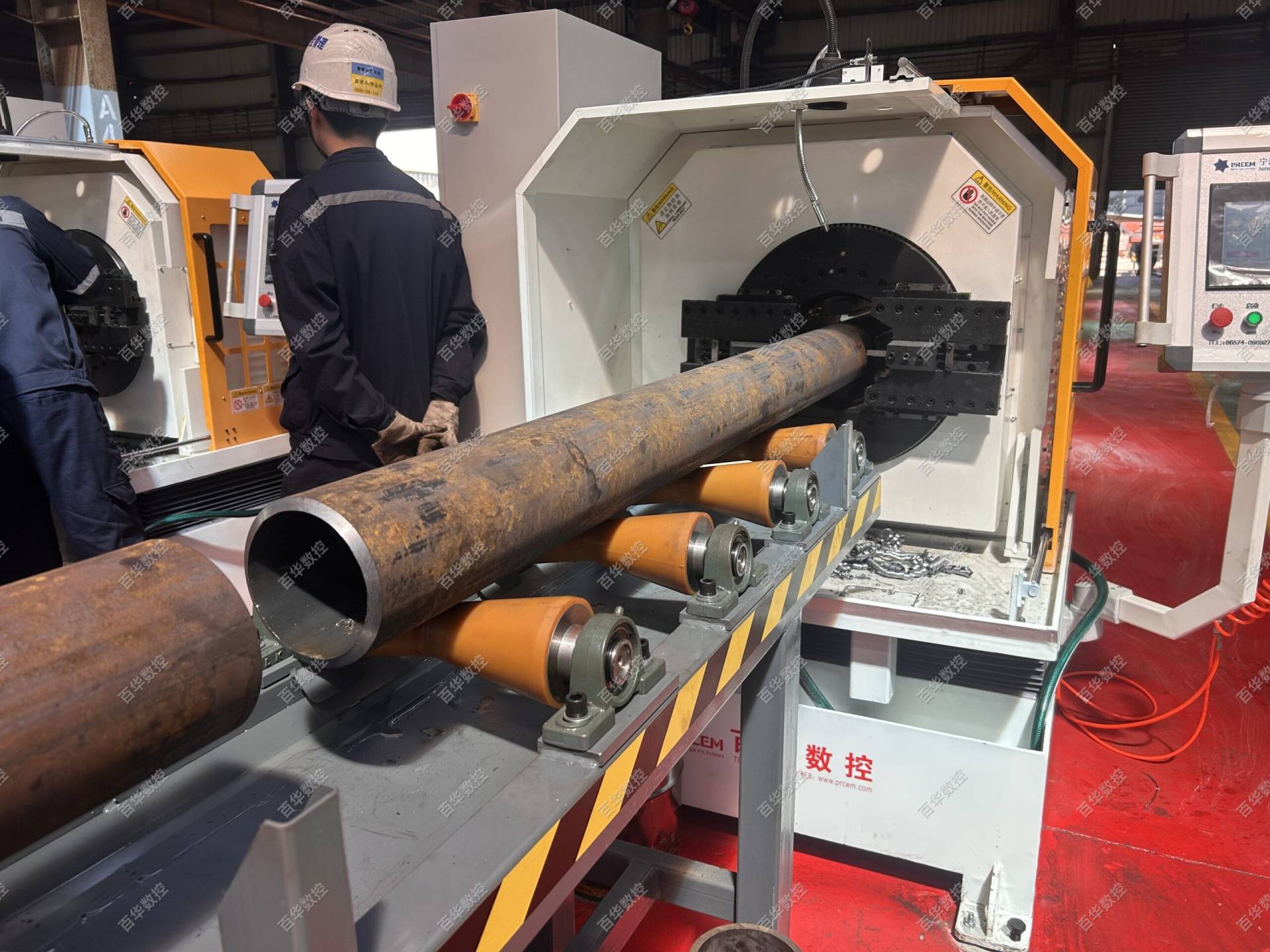

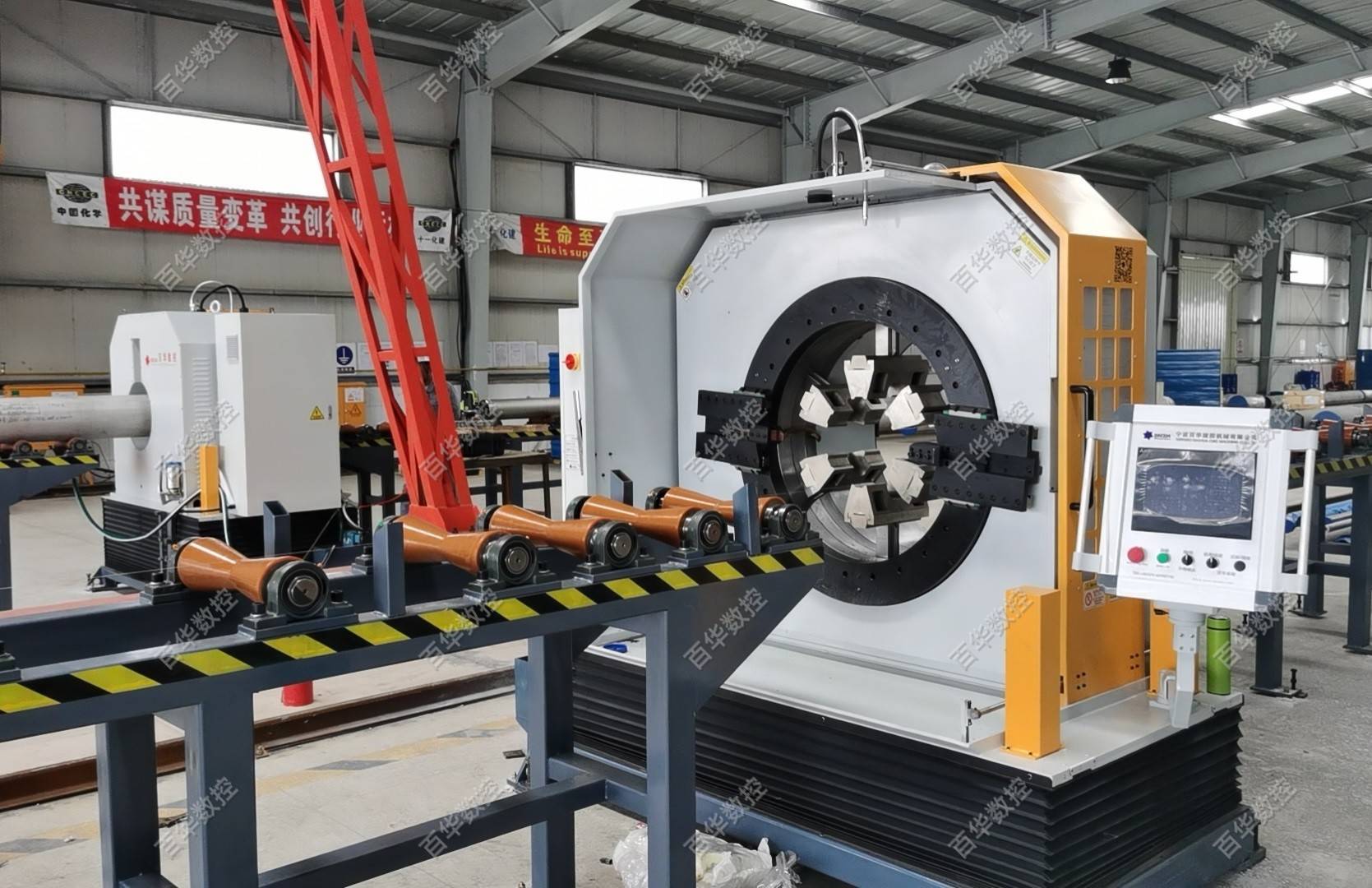

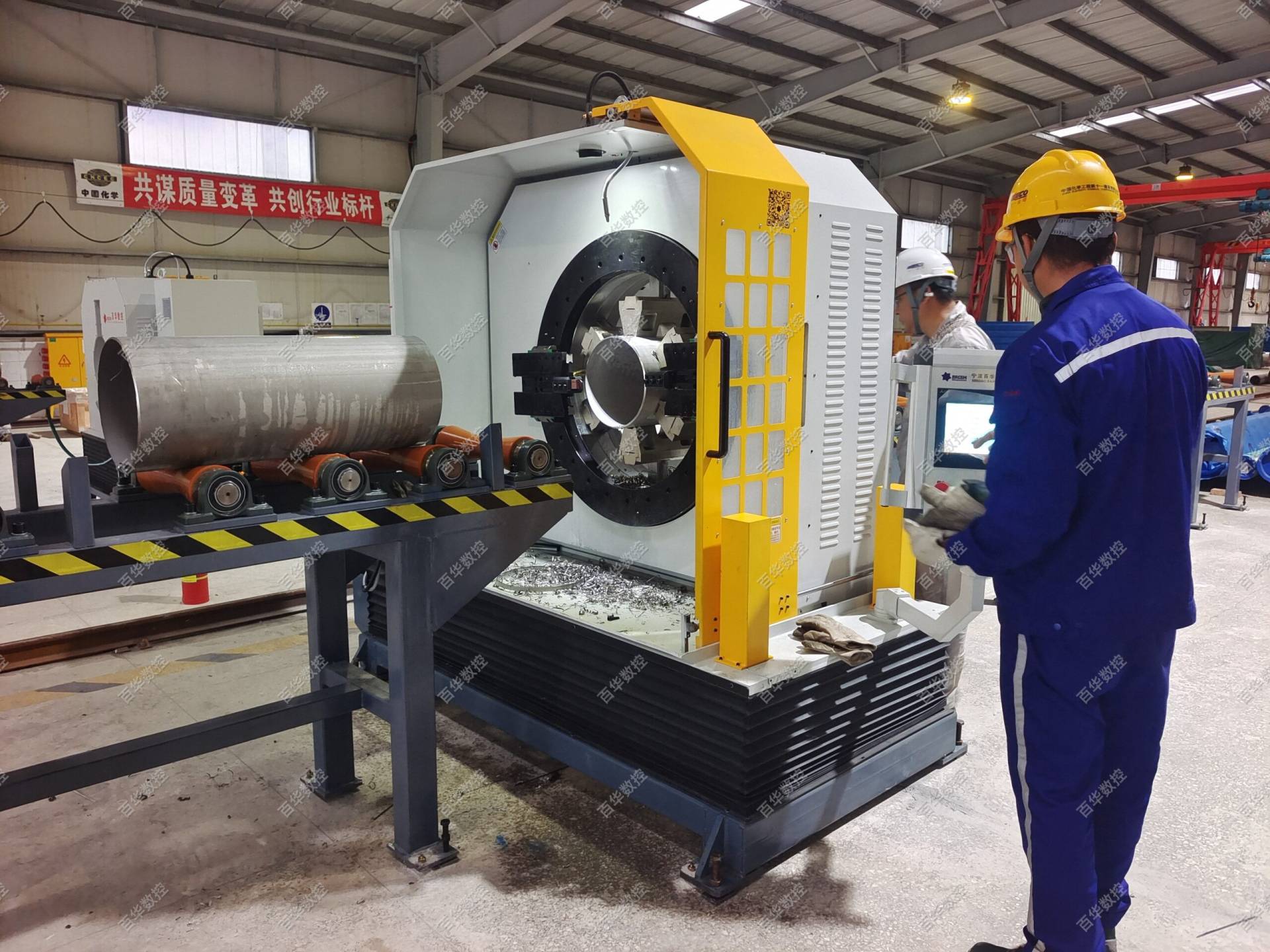

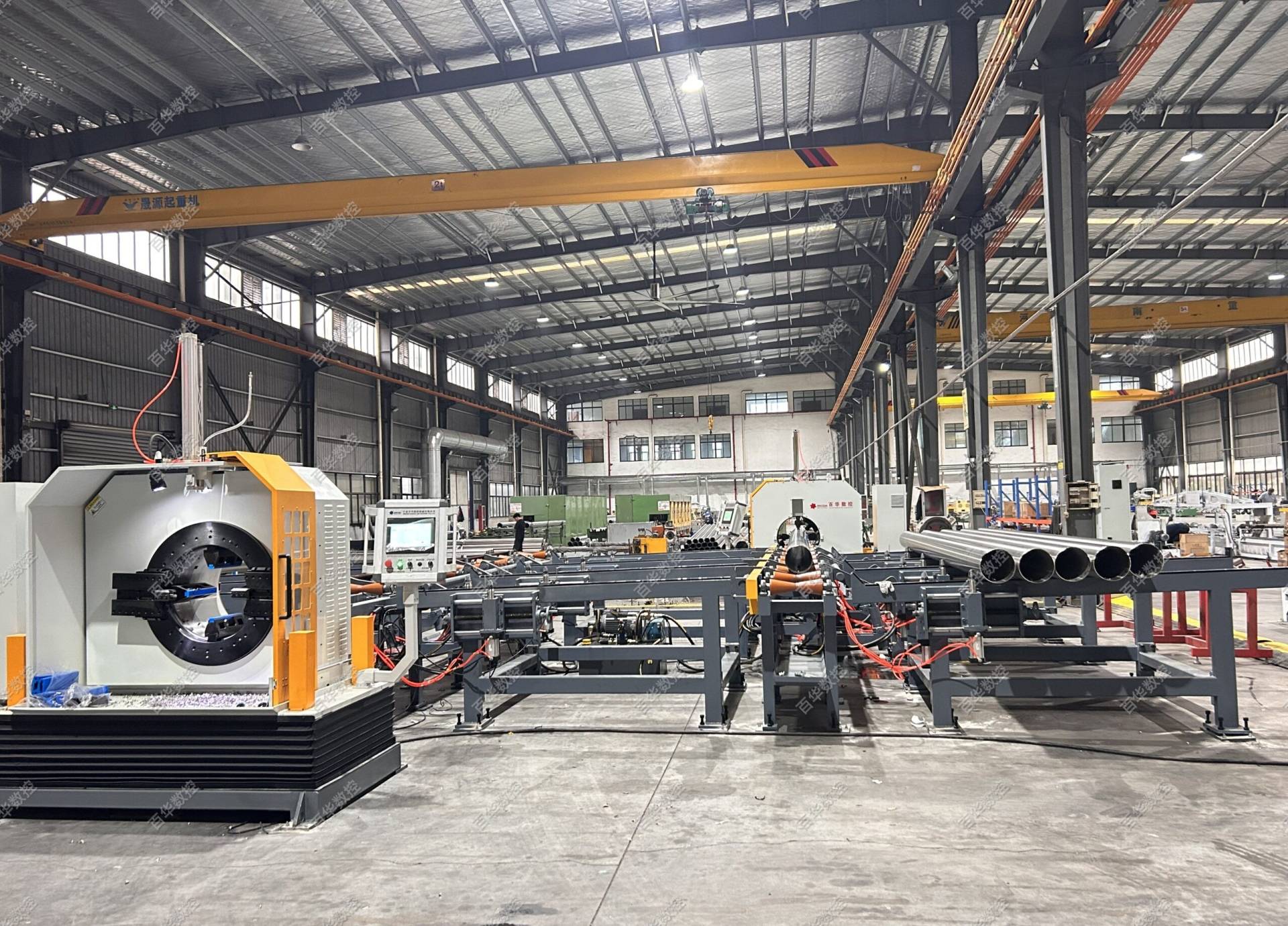

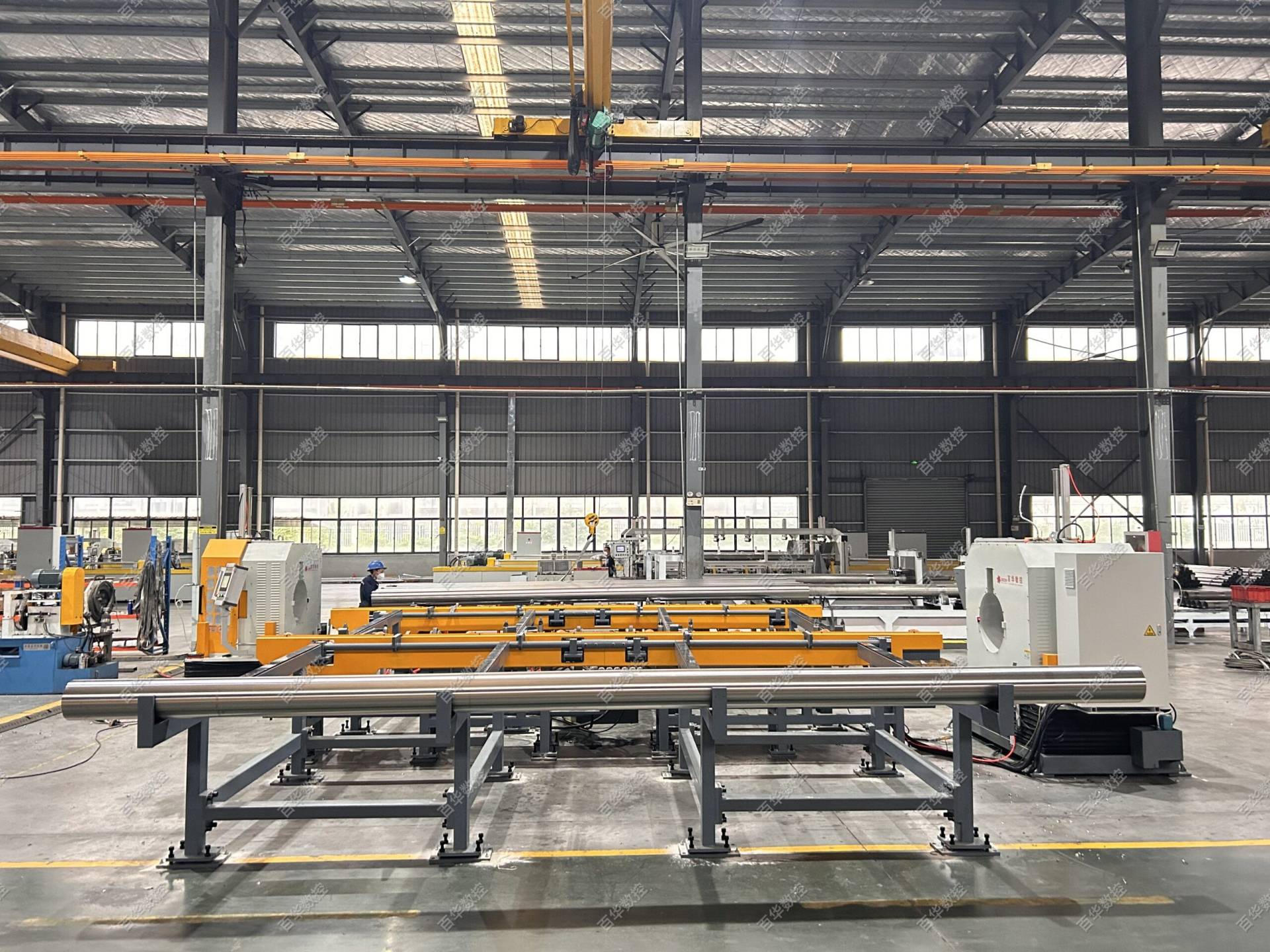

Product Brochure
Showcase product details and real-world application scenarios from multiple perspectives
Product Specifications
Overview of models and technical performance indicators at a glance
| Model | PAM-6 | PAM-12 | PAM-16 | PAM-24 | PAM-32 | PAM-40 |
|---|---|---|---|---|---|---|
| Applicable Pipe Diameter | DN30-150 | DN40-300 | DN50-400 | DN300-600 | DN500-800 | DN700-1000 |
| Applicable Material | Carbon steel, alloy steel, stainless steel, duplex stainless steel, low-temperature steel, heat-resistant steel, etc. | |||||
| Processing Capacity |
Straight cut machining
End-face bevel machining
Cutting + bevel machining
|

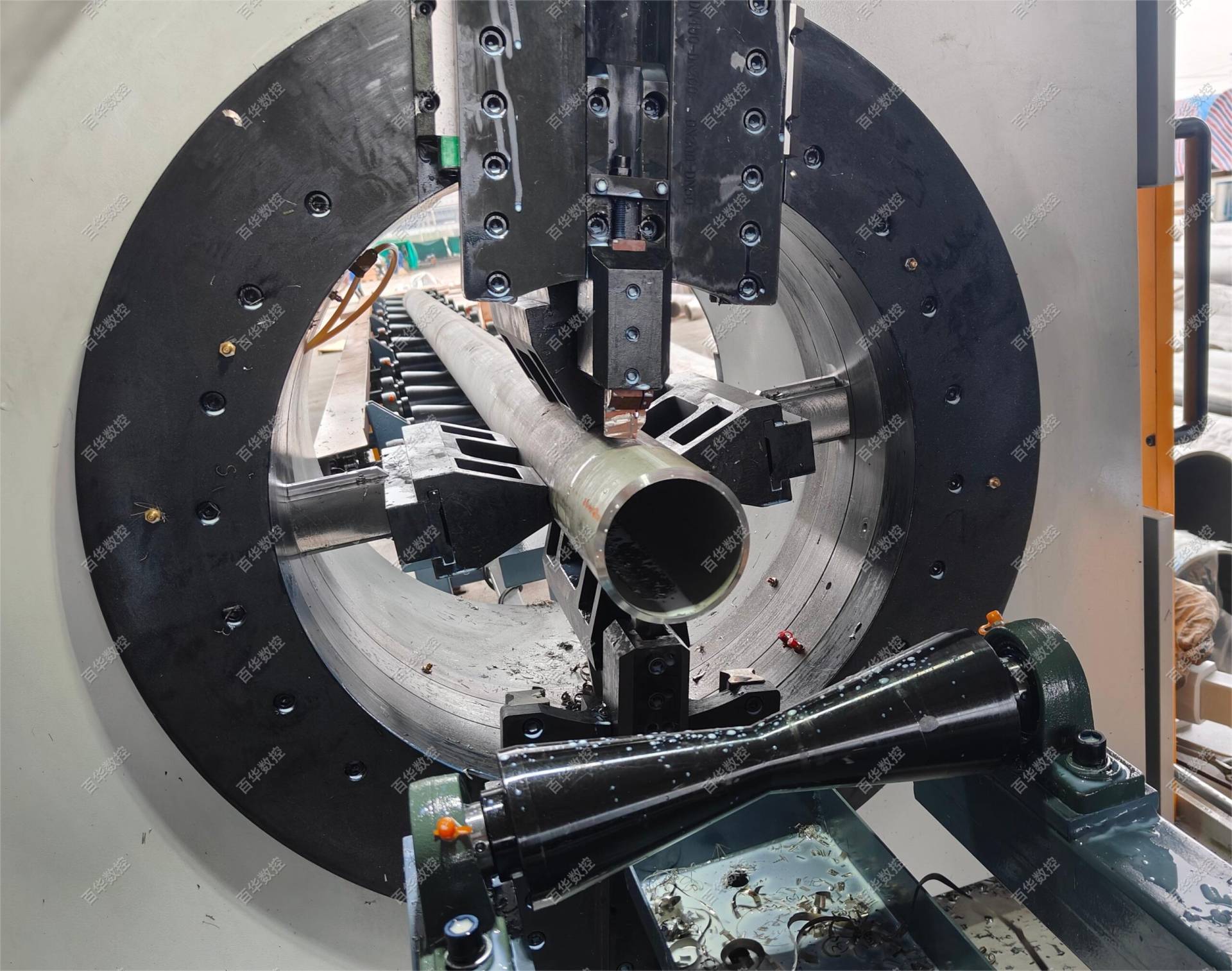

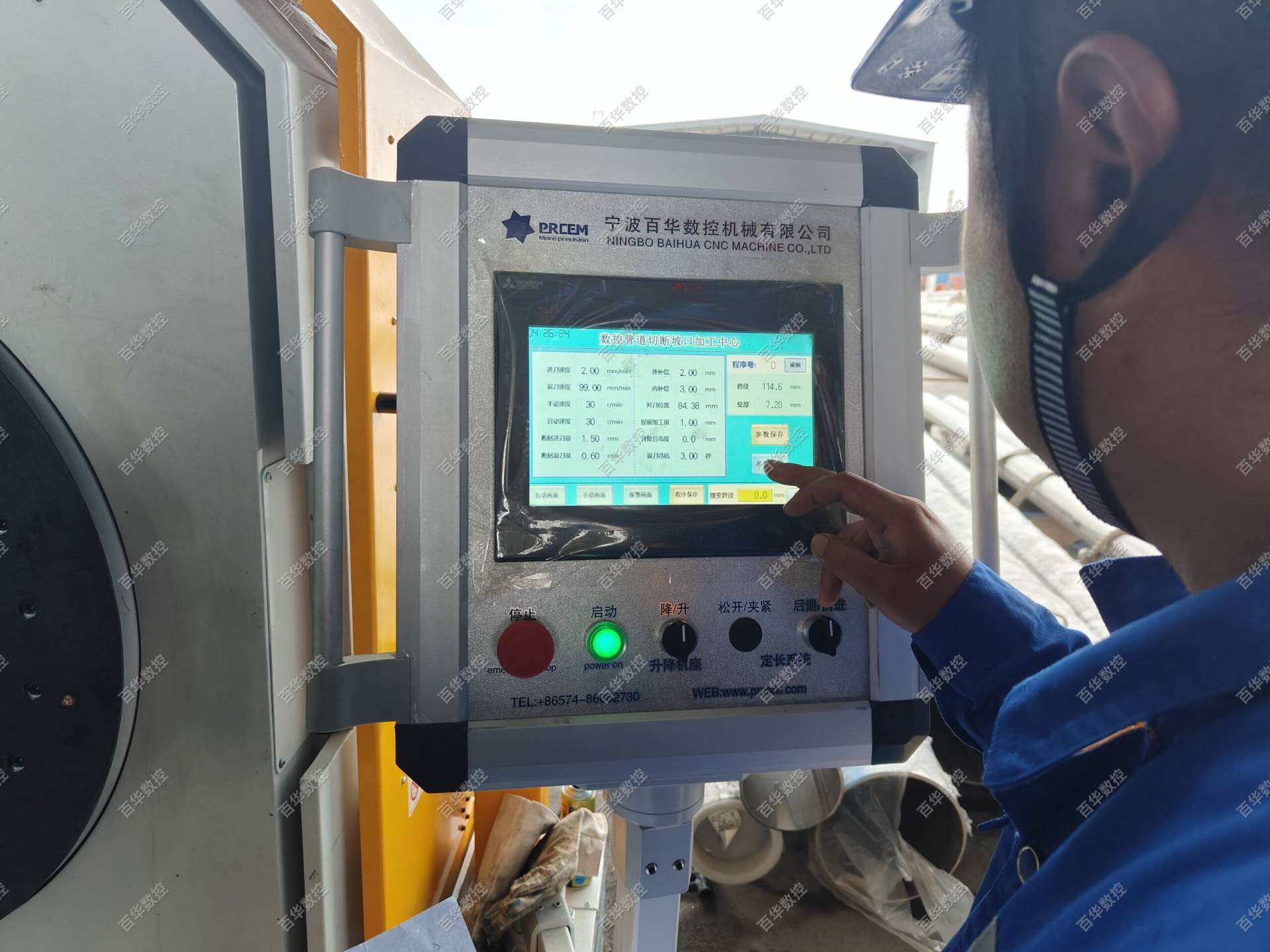

|||||
| Tool Holders | One set of cutting tool holder and one set of beveling tool holder | |||||
| Clamping System | One multi-jaw self-centering clamping system installed on the main machine body together with the cutter head | |||||
| Machine Base Lifting | Equipped with an electric lifting base to meet the requirement of electrically adjusting the main machine height when machining different pipe diameters | |||||
| Tool Feed and Retract Method | Servo-controlled fast feed, working feed, idle travel, rapid return, etc., with tool travel coordinate memory | |||||
| Processing Efficiency | For a Φ219*8mm pipe, the cutting + beveling time is about 2 min | |||||
| Loaded Feed Rate | 0.05-0.5mm/r | |||||
| No-load Travel Speed | Not less than 300mm/min | |||||
| Cold Cutting Method | Cutting fluid circulating water cooling or air cooling | |||||
| Operation Control | PLC program control + 10-inch human-machine interface | |||||
| Intelligent Machining | A powerful software system with a searchable database that can automatically match machining processes. After selecting the processing material and entering the pipe diameter and wall thickness, the system automatically matches suitable machining process parameters to prevent misoperation | |||||
| Machining Accuracy | Bevel end-face perpendicularity ≤1mm; surface roughness ≤Ra6.3; angle deviation ≤0.5° | |||||
| Online Machining |
Can be equipped with various auxiliary systems together with the machining main unit to form a production line for continuous processing;
and can connect to the factory MES system via Ethernet to realize interconnection and sharing of machining data
|
|||||
※ As the product is continuously iterated and upgraded and operating conditions differ among users in different industries, the configuration and performance parameters are subject to those confirmed at the time of order.
