Product Overview
Solve your business pain points through innovative technical solutions
This HJ series cantilever-type shell longitudinal and circumferential seam automatic welding machine is mainly used for longitudinal seam welding of pressure vessel shells after plate rolling, circumferential seam welding for extending two or more shell sections, and circumferential seam welding between shells and heads or flanges. The equipment consists of a cross-type cantilever welding machine, driven welding rotator, welding power source, etc. For circumferential seams, the rotator drives the workpiece to rotate while the welding torch remains relatively fixed to weld the circumferential seam; for longitudinal seams, the workpiece remains stationary and the cantilever of the cross-type welding machine extends and retracts to perform longitudinal seam welding. It is an ideal piece of equipment for pressure vessel manufacturing.

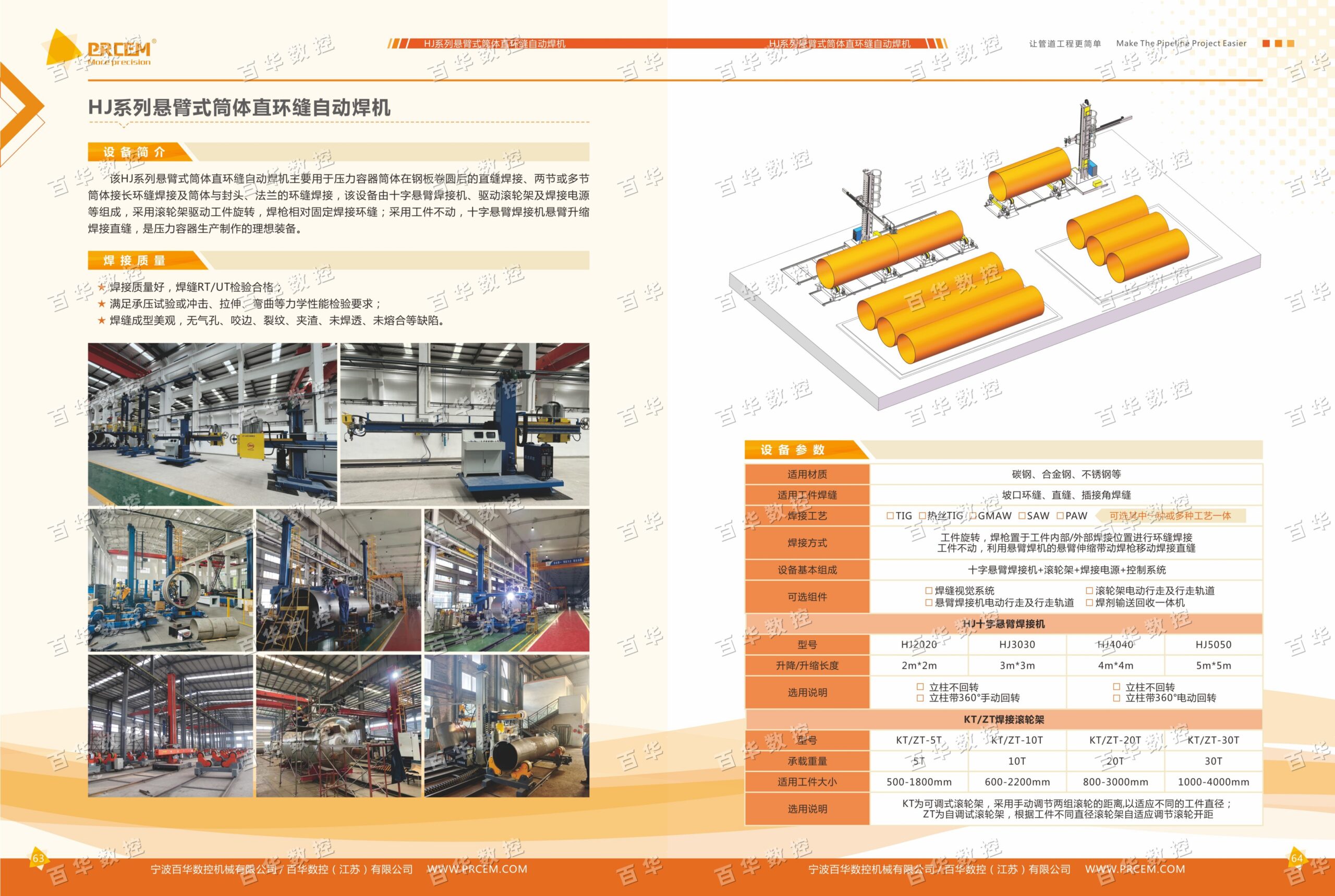

Product Brochure
Showcasing product details and real application scenarios from multiple angles
Product Specifications
An overview of models and technical performance metrics
| Applicable Materials | Carbon steel, alloy steel, stainless steel, etc. | |||
| Applicable Workpiece Weld Seams | Grooved circumferential seams, longitudinal seams, socket fillet welds | |||
| Welding Processes |
TIG
Hot-wire TIG
GMAW
PAW
SAW
(One or more of the above processes can be integrated in a single system)
|
|||
| Welding Method |
The workpiece rotates while the welding torch is positioned at the internal/external welding position of the workpiece for circumferential seam welding.
For longitudinal seams, the workpiece remains stationary and the extension/retraction of the cantilever of the welding machine drives the welding torch to move for welding.
|
|||
| Basic Equipment Composition | Cross-type cantilever welding machine + welding rotator + welding power source + control system | |||
| Optional Components |
Weld seam vision system
Powered travel and travel rail for welding rotator
Powered travel and travel rail for cantilever welding machine
Integrated flux conveying and recovery unit
|
|||
| HJ Series Cross-Type Cantilever Welding Machine | ||||
|---|---|---|---|---|
| Model | HJ2020 | HJ3030 | HJ4040 | HJ5050 |
| Lifting / Extension Length | 2m*2m | 3m*3m | 4m*4m | 5m*5m |
| Selection Notes |
Column non-rotating
Column with 360° manual rotation
|
Column non-rotating
Column with 360° electric rotation
|
||
| KT/ZT Series Welding Rotators | ||||
| Model | KT/ZT-5T | KT/ZT-10T | KT/ZT-20T | KT/ZT-30T |
| Load Capacity | 5T | 10T | 20T | 30T |
| Applicable Workpiece Size | 500-1800mm | 600-2200mm | 800-3000mm | 1000-4000mm |
| Selection Notes |
KT is an adjustable welding rotator. The distance between the two sets of rollers is manually adjusted to accommodate different workpiece diameters. ZT is a self-aligning welding rotator. The roller spacing is automatically adjusted according to different workpiece diameters. |
|||
※ As products are continuously upgraded and operating conditions vary among users in different industries, the configuration and performance parameters are subject to the specifications confirmed at the time of order.
